AO4430 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 18 A (VGS = 10V).
  • RDS(ON) ＜ 5.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 7.5mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resista.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4430 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4430 N-Channel MOSFET VBsemi
AO4430L N-Channel FET Alpha & Omega Semiconductors
AO4433 P-Channel Power MOSFET Alpha & Omega Semiconductors
AO4433 P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4402 N-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4410 N-Channel MOSFET
AO4444 N-Channel MOSFET
AO4447A-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

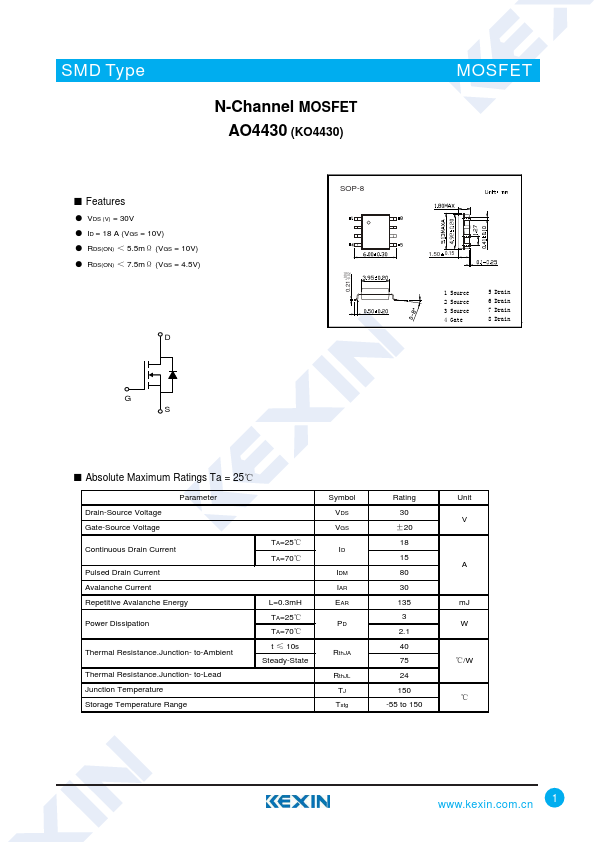

SMD Type N-Channel MOSFET AO4430 (KO4430) ■ Features ● VDS (V) = 30V ● ID = 18 A (VGS = 10V) ● RDS(ON) ＜ 5.5mΩ (VGS = 10V) ● RDS(ON) ＜ 7.5mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.3mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 18 15 80 30 135 3 2.
