AO4453 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-9 A (VGS =-4.5V).
  • RDS(ON) ＜ 19mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 22mΩ (VGS =-3.3V).
  • RDS(ON) ＜ 26mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 36mΩ (VGS =-1.8V).
  • RDS(ON) ＜ 50mΩ (VGS =-1.5V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4453 12V P-Channel MOSFET Alpha & Omega Semiconductors
AO4450 40V N-Channel MOSFET Alpha & Omega Semiconductors
AO4450 40V N-Channel MOSFET Freescale
AO4451 P-Channel MOSFET Alpha & Omega Semiconductors
AO4452 100V N-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4450 N-Channel MOSFET
AO4452 N-Channel MOSFET
AO4454 N-Channel MOSFET
AO4455 P-Channel MOSFET
AO4459 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

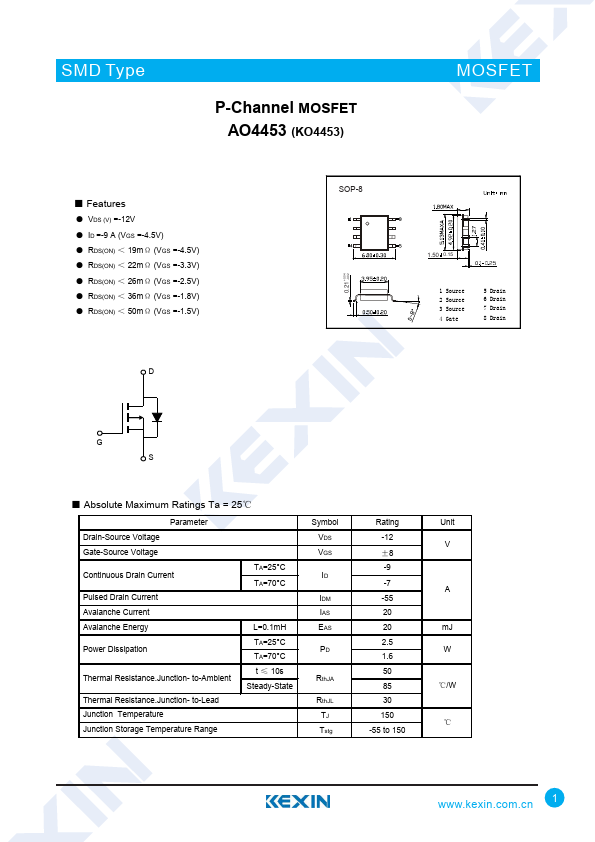

SMD Type P-Channel MOSFET AO4453 (KO4453) ■ Features ● VDS (V) =-12V ● ID =-9 A (VGS =-4.5V) ● RDS(ON) ＜ 19mΩ (VGS =-4.5V) ● RDS(ON) ＜ 22mΩ (VGS =-3.3V) ● RDS(ON) ＜ 26mΩ (VGS =-2.5V) ● RDS(ON) ＜ 36mΩ (VGS =-1.8V) ● RDS(ON) ＜ 50mΩ (VGS =-1.5V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C L=0.
