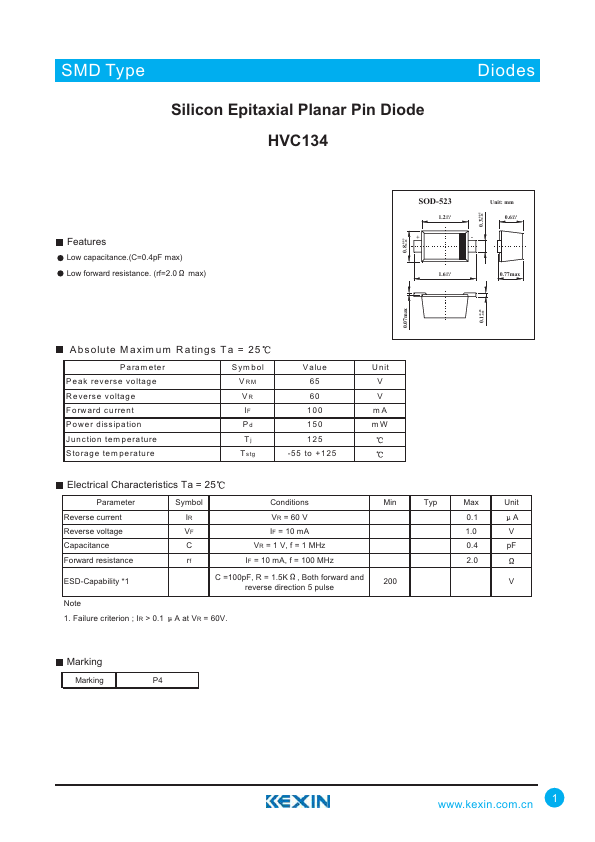

HVC134
Features
Low capacitance.(C=0.4p F max) Low forward resistance. (rf=2.0 max)
+0.05 0.8 -0.05
SOD-523
1.2+0.1 -0.1
+
+0.05 0.3 -0.05
Unit: mm 0.6+0.1
-0.1
- 1.6+0.1 -0.1
0.77max
+0.05 0.1 -0.02
0.07max
Absolute M axim um R atings T a = 25
Param eter Peak reverse voltage Reverse voltage Forward current Power dissipation Junction tem perature Storage tem perature
Sym bol VRM VR IF Pd Tj T stg
V a lu e 65 60 100 150 125
-55 to +125
U n it V V m A m W
Electrical Characteristics Ta = 25
Parameter Reverse current Reverse voltage Capacitance Forward resistance
Symbol IR VF C rf
Conditions VR = 60 V IF = 10 m A VR = 1 V, f = 1 MHz IF = 10 m A, f = 100 MHz
Min
Typ
Max
Unit
0.4 p F
ESD-Capability
- 1
C =100p F, R = 1.5K , Both forward and
V reverse direction 5 pulse
Note 1. Failure criterion ; IR > 0.1 A at VR = 60V.
Marking
Marking
P4
