NDT25N06 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 25 A (VGS = 10V).
  • RDS(ON) ＜ 65mΩ (VGS = 10V).
  • High Current Capability.

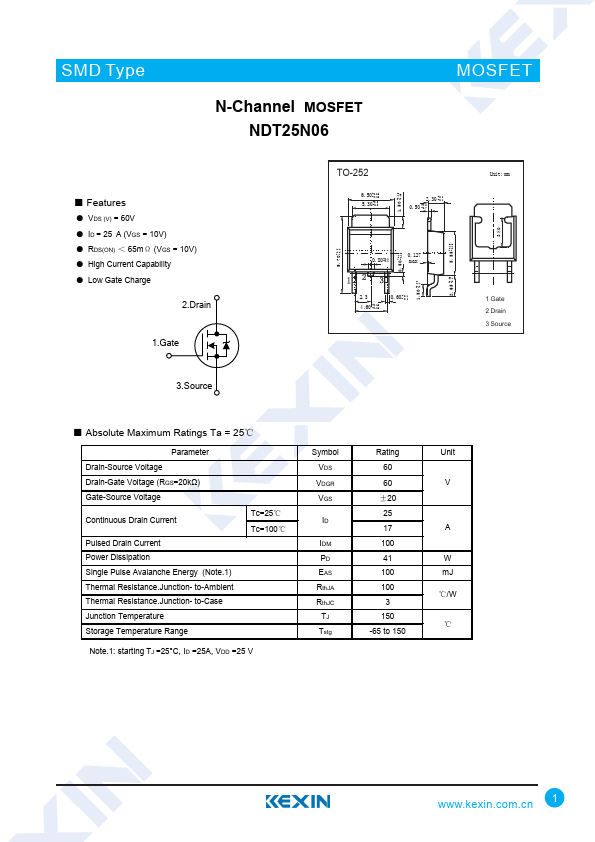

  • Low Gate Charge 2.Drain 1.Gate +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +0 1.50 .15 -0.15 3.80 +0 5.55 .15 -0.15 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source 3.Source.

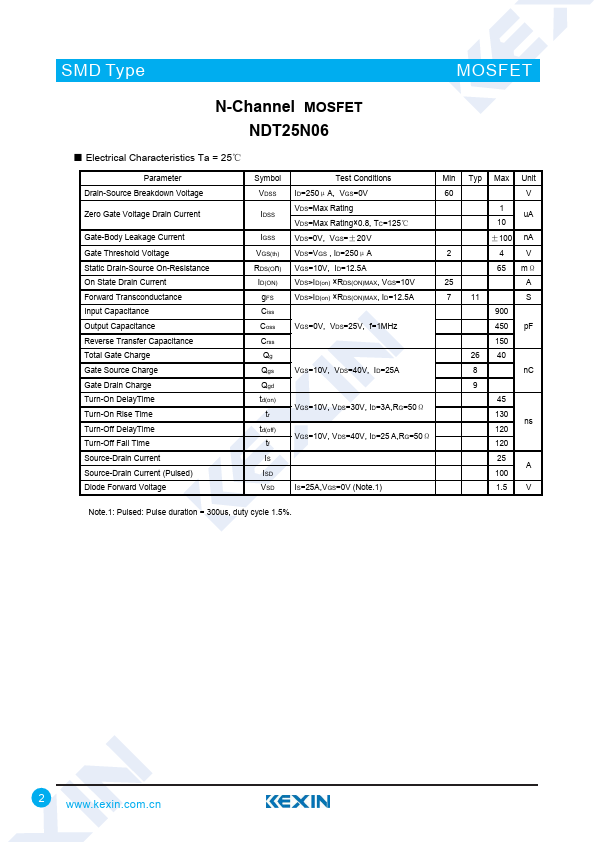

  • Absolute Maximum Ratings Ta = 25℃ Parameter Dr.
