NDT2N60 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 2 A (VGS = 10V).
  • RDS(ON) ＜ 4.5Ω (VGS = 10V).
  • Low Gate Charge.
  • Low Reverse transfer capacitances TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 0.15 1 .5 0 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +0 5.55 .15 -0.15 + 0.2 9 .7 0 -0.2 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Sour.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT28P 2Gb (x8) DDR3L Synchronous DRAM Insignis
NDT2955 P-Channel MOSFET Fairchild
NDT2955 P-Channel Enhancement Mode Field Effect Transistor ON Semiconductor
NDT2955 P-Channel 60V MOSFET VBsemi
NDT014 N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT2N60P N-Channel MOSFET
NDT20N06 N-Channel MOSFET
NDT25N06 N-Channel MOSFET
NDT25N15 N-Channel MOSFET
NDT06N02 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

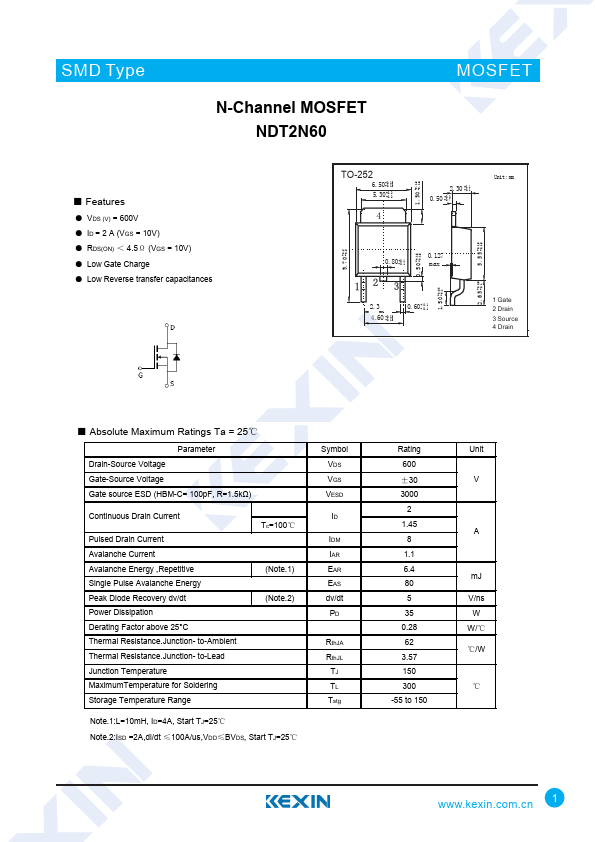

SMD Type N-Channel MOSFET NDT2N60 MOSFET ■ Features ● VDS (V) = 600V ● ID = 2 A (VGS = 10V) ● RDS(ON) ＜ 4.5Ω (VGS = 10V) ● Low Gate Charge ● Low Reverse transfer capacitances TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 0.15 1 .5 0 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +0 5.55 .15 -0.15 + 0.2 9 .7 0 -0.2 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Gate source ESD (HBM-C= 100pF, R=1.
