NDT40P04 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-40V.
  • ID =-40 A (VGS =-10V).
  • RDS(ON) ＜ 14mΩ (VGS =-10V).
  • Fully characterized avalanche voltage and current.
  • Good stability and uniformity with high EAS + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT410EL N-Channel MOSFET Fairchild
NDT451AN N-Channel MOSFET Fairchild
NDT451N N-Channel MOSFET Fairchild
NDT451N 30V N-Channel MOSFET VBsemi
NDT452AP P-Channel MOSFET Fairchild

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT4N20L N-Channel MOSFET
NDT4N60 N-Channel MOSFET
NDT4N65 N-Channel Enhancement MOSFET
NDT4N65P N-Channel Enhancement MOSFET
NDT4N70 N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

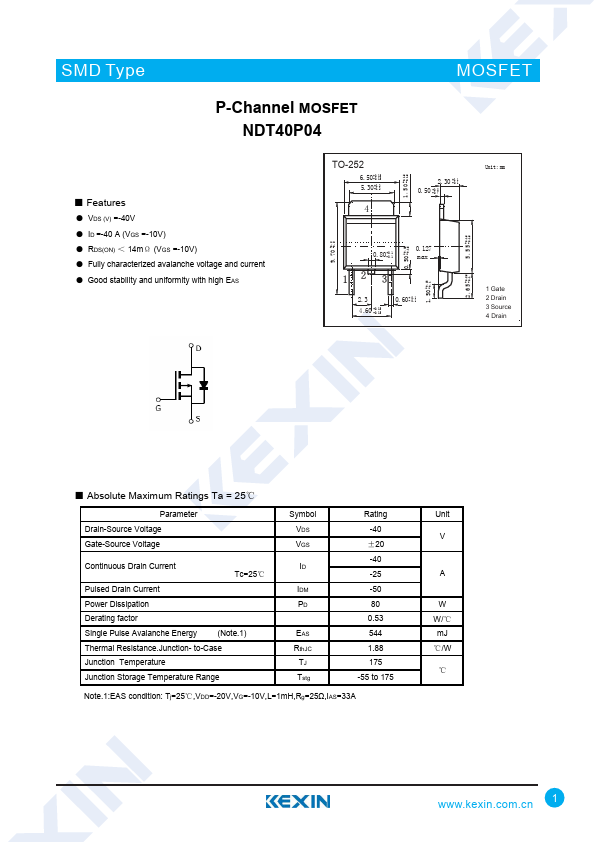

SMD Type MOSFET P-Channel MOSFET NDT40P04 ■ Features ● VDS (V) =-40V ● ID =-40 A (VGS =-10V) ● RDS(ON) ＜ 14mΩ (VGS =-10V) ● Fully characterized avalanche voltage and current ● Good stability and uniformity with high EAS + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Pulsed Drain Current Power Dissipation Derating factor Single Pulse Avalanche Energy (Note.1) Thermal Resistance.
