NDT4N70 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 700V.
  • ID = 4.2 A (VGS = 10V).
  • RDS(ON) ＜ 2.15Ω (VGS = 10V) 2.Drain 1.Gate 3.Source + 9.70 0.2 -0.2 TO-252 6.50+ 0.15 - 0.15 5.30+ 0.2 - 0.2 Unit: mm 2.30+ 0.1 - 0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 + 0.1 5 5 .5 5 -0.15 + 0.15 0 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax + 1.50 0.28 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continu.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT410EL N-Channel MOSFET Fairchild
NDT451 N-Channel MOSFET Fairchild
NDT451AN N-Channel MOSFET Fairchild
NDT451N N-Channel MOSFET Fairchild
NDT452AP P-Channel MOSFET Fairchild

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT4N60 N-Channel MOSFET
NDT4N65 N-Channel Enhancement MOSFET
NDT4N65P N-Channel Enhancement MOSFET
NDT06N02 N-Channel MOSFET
NDT06N03 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

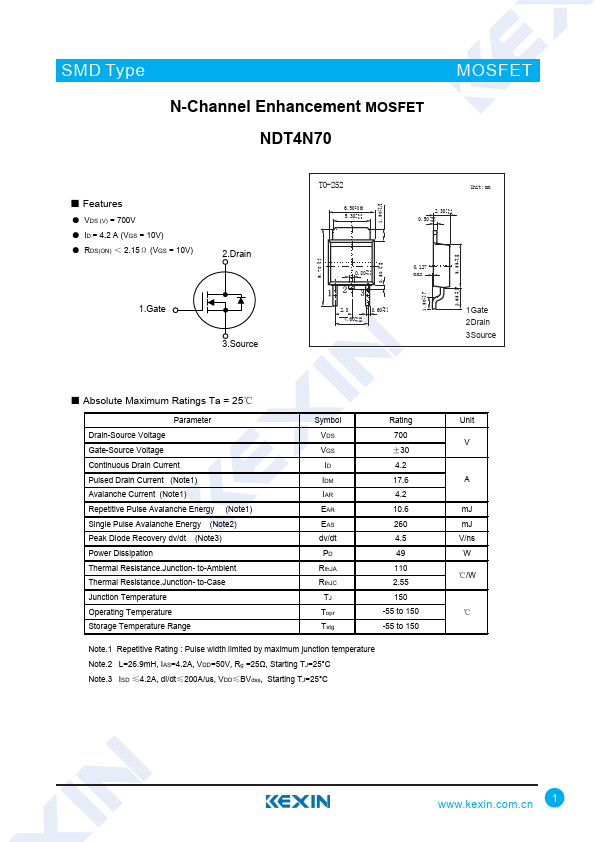

SMD Type N-Channel Enhancement MOSFET NDT4N70 MOSFET ■ Features ● VDS (V) = 700V ● ID = 4.2 A (VGS = 10V) ● RDS(ON) ＜ 2.15Ω (VGS = 10V) 2.Drain 1.Gate 3.Source + 9.70 0.2 -0.2 TO-252 6.50+ 0.15 - 0.15 5.30+ 0.2 - 0.2 Unit: mm 2.30+ 0.1 - 0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 + 0.1 5 5 .5 5 -0.15 + 0.15 0 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax + 1.50 0.28 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note1) Avalanche Current (Note1) Repetitive Pulse Avalanche Energy (Note1) Single Pulse Avalanche Energy (Note2) Peak Diode Recovery dv/dt (Note3) Power Dissipation Thermal Resistance.
