SI9926DY - Dual N-Channel MOSFET

Key Features

  • s.
  • RDS(on) ≤ 0.032 Ω @ VGS = 4.5 V.
  • RDS(on) ≤ 0.045 Ω @ VGS = 2.5 V. TSSOP-8 Unit: mm D1 D2 S1 S2 S1 S2 G1 G2 1 : Drain1 2 : Source1 3 : Source1 4 : Gate1 5 : Gate2 6 : Source2 7 : Source2 8 : Drain2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Maximum Power Dissipation TA = 25℃ TA = 70℃ Thermal Resistance,Junction-to-Ambient Jumction temperature and Storage temperature Symbol VDS V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si9926DY Dual N-Channel 2.5V Specified MOSFET Fairchild
Si9926DY 2.5V Dual N-Channel MOSFET Vishay
Si9926DY Dual N-Channel Enhancement-Mode MOSFET TEMIC
Si9926 Dual N-Channel MOSFET Nanxin
SI9926ADY Dual N-Channel 2.5-V (G-S) MOSFET Vishay Siliconix

Other Datasheets by Kexin Semiconductor

Part Number Description
SI9926 Dual N-Channel MOSFET
SI9926BDY Dual N-Channel MOSFET
SI9410DY N-Channel MOSFET
SI9435BDY P-Channel Enhancement MOSFET
SI9435DY P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

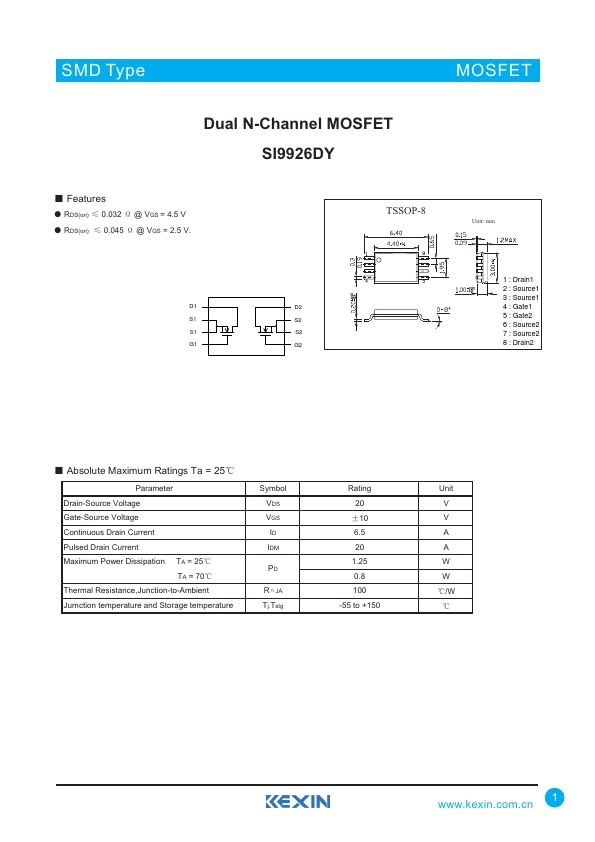

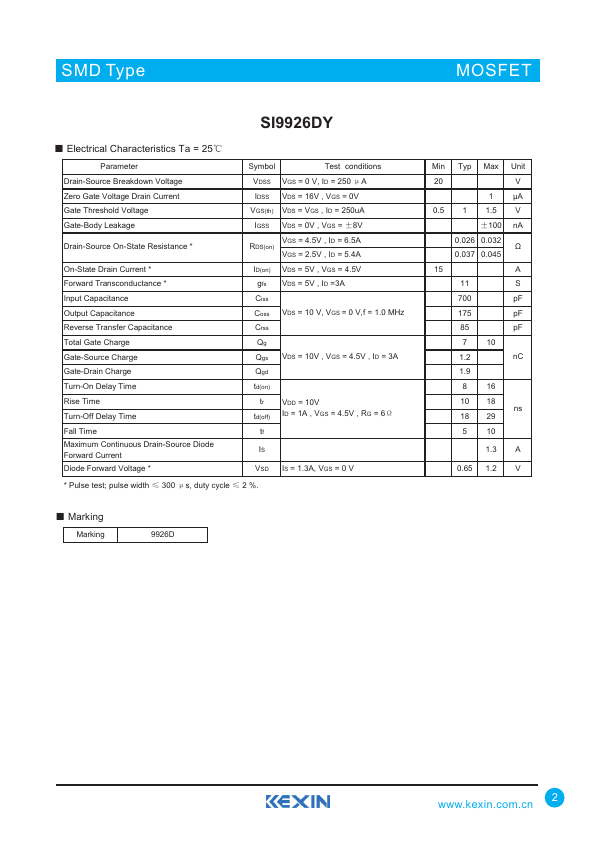

SMD Type MOSFET Dual N-Channel MOSFET SI9926DY ■ Features ● RDS(on) ≤ 0.032 Ω @ VGS = 4.5 V ● RDS(on) ≤ 0.045 Ω @ VGS = 2.5 V. TSSOP-8 Unit: mm D1 D2 S1 S2 S1 S2 G1 G2 1 : Drain1 2 : Source1 3 : Source1 4 : Gate1 5 : Gate2 6 : Source2 7 : Source2 8 : Drain2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Maximum Power Dissipation TA = 25℃ TA = 70℃ Thermal Resistance,Junction-to-Ambient Jumction temperature and Storage temperature Symbol VDS VGS ID IDM PD RθJA Tj.Tstg Rating 20 ±10 6.5 20 1.25 0.8 100 -55 to +150 Unit V V A A W W ℃/W ℃ 1 www.kexin.com.
