AMC-142 - Low Noise Amplifier

Description

M/A-COM’s AM-142 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a TO-8 package.

Features

  • n 2.2 dB Typical Midband Noise Figure n +6 dBm Typical Midband Output Power n +20 dBm Typical Midband Third Order Intercept.

📥 Download Datasheet

Datasheet preview – AMC-142

Datasheet Details

Part number AMC-142
Manufacturer MACOM
File Size 100.68 KB
Description Low Noise Amplifier
Datasheet download datasheet AMC-142 Datasheet
Additional preview pages of the AMC-142 datasheet.

📁 Similar Datasheet

  • AMC-100 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)
  • AMC-1000 - Processor Module (ADLINK)
  • AMC-101 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)
  • AMC-117 - Low Noise Amplifier (MA-COM)
  • AMC-119 - High Performance Amplifier (MA-COM)
  • AMC-123 - High Performance Amplifier (MA-COM)
  • AMC-132 - High Performance Amplifier (MA-COM)
  • AMC-134 - High Performance Amplifier (MA-COM)
  • AMC-136 - High Performance Amplifier (MA-COM)
  • AMC-138 - High Performance Amplifier (MA-COM)
Other Datasheets by MACOM
  • AMC-140 - High Performance Amplifier
  • AMC-143 - Low Noise Amplifier
  • AMC-145 - High Performance Amplifier
  • AMC-146 - High Performance Amplifier
  • AMC-147 - Cascadable Amplifier
  • AMC-151 - Cascadable Amplifier
  • AMC-182 - Cascadable Thin Film Amplifier
  • AMC-184 - Cascadable Thin Film Amplifier

Full PDF Text Transcription

Click to expand full text

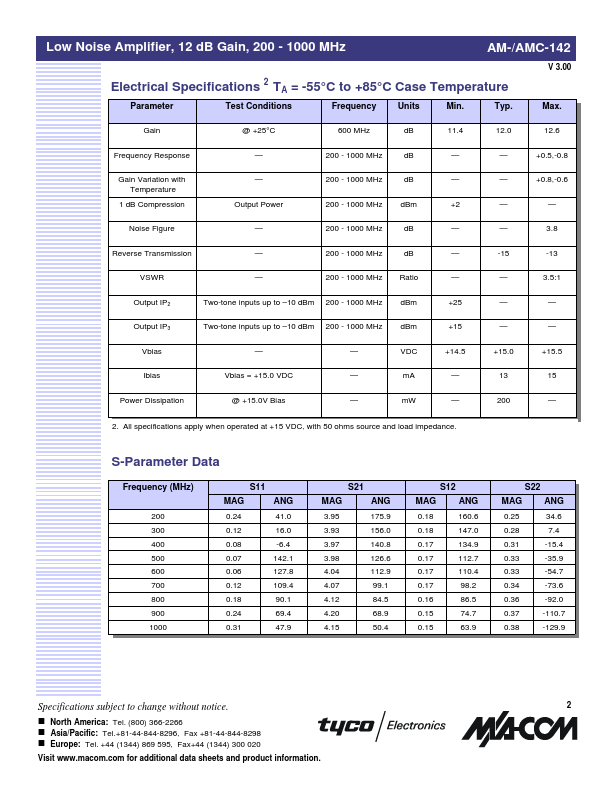

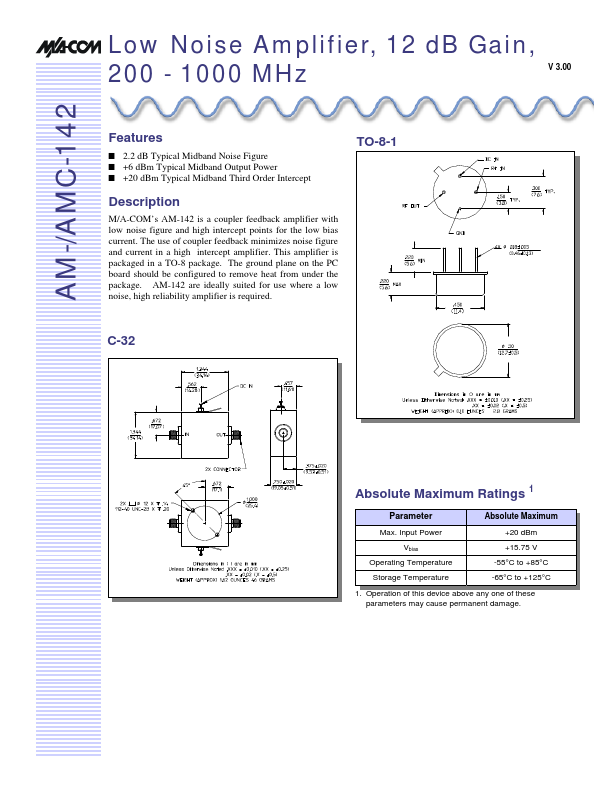

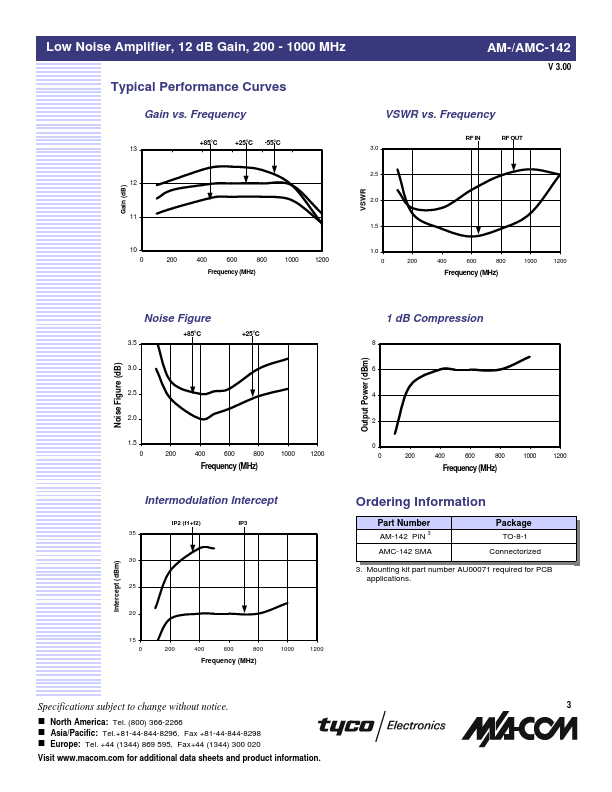

AM-/AMC-142 Low Noise Amplifier, 12 dB Gain, 200 - 1000 MHz V 3.00 Features n 2.2 dB Typical Midband Noise Figure n +6 dBm Typical Midband Output Power n +20 dBm Typical Midband Third Order Intercept Description M/A-COM’s AM-142 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. The ground plane on the PC board should be configured to remove heat from under the package. AM-142 are ideally suited for use where a low noise, high reliability amplifier is required. TO-8-1 C-32 Absolute Maximum Ratings 1 Parameter Absolute Maximum Max. Input Power +20 dBm Vbias Operating Temperature +15.
