AMC-143 Datasheet | MACOM Technology Solutions

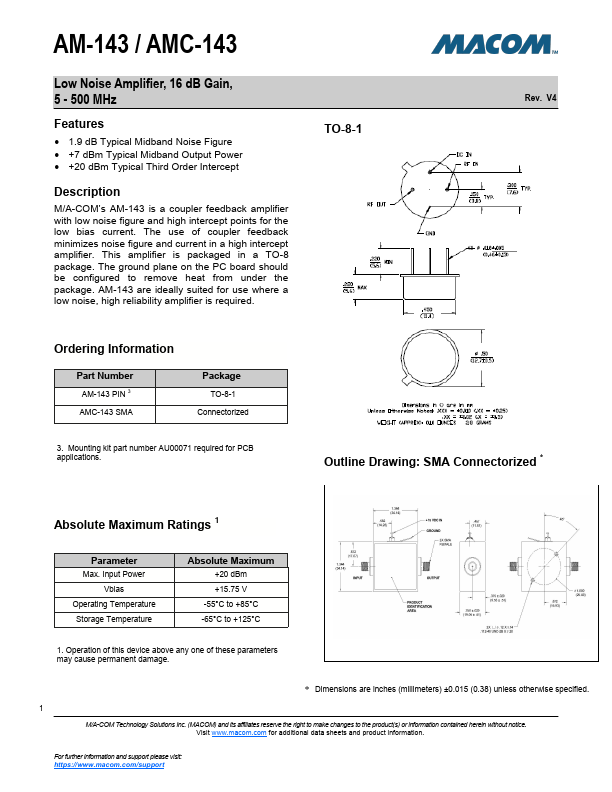

Features - 1.9 d B Typical Midband Noise Figure - +7 d Bm Typical Midband Output Power - +20 d Bm Typical Third Order Intercept Description M/A-’s AM-143 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. The ground plane on the PC board should be configured to remove heat from under the package. AM-143 are ideally suited for use where a low noise, high reliability amplifier is required. TO-8-1 Rev. V4 Ordering Information Part Number AM-143 PIN 3 AMC-143 SMA Package TO-8-1 Connectorized 3. Mounting kit part number AU00071 required for PCB applications. Outline Drawing: SMA Connectorized - Absolute Maximum Ratings 1 Parameter Max. Input Power Vbias Operating Temperature Storage Temperature Absolute Maximum +20 d Bm +15.75 V -55°C to +85°C -65°C to +125°C 1. Operation of this device above any one of these parameters may cause permanent damage.  Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified. M/A- Technology Solutions Inc. (MA) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice. Visit .ma. for additional data sheets and product information. For further information and support please visit: https://.ma./support AM-143 / AMC-143 Low Noise Amplifier, 16 d B Gain, 5 - 500 MHz Electrical Specifications: 2, TA = -55°C to +85°C Case Temperature Parameter Gain Test Conditions @+25o C Frequency 50 MHz Units d B Min. 15.3 Typ. 15.8 Rev. V4 Max. 16.3 Frequency Response - 5 - 500 MHz d B - Gain Variation with...
