AMC-145 - High Performance Amplifier

Description

M/A-COM’s AM-145 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a TO-8 package.

Features

  • 2.5 dB Typical Midband Noise Figure.
  • +19 dBm Typical Midband Output Power.
  • +37 dBm Typical Midband Third Order Intercept.

📥 Download Datasheet

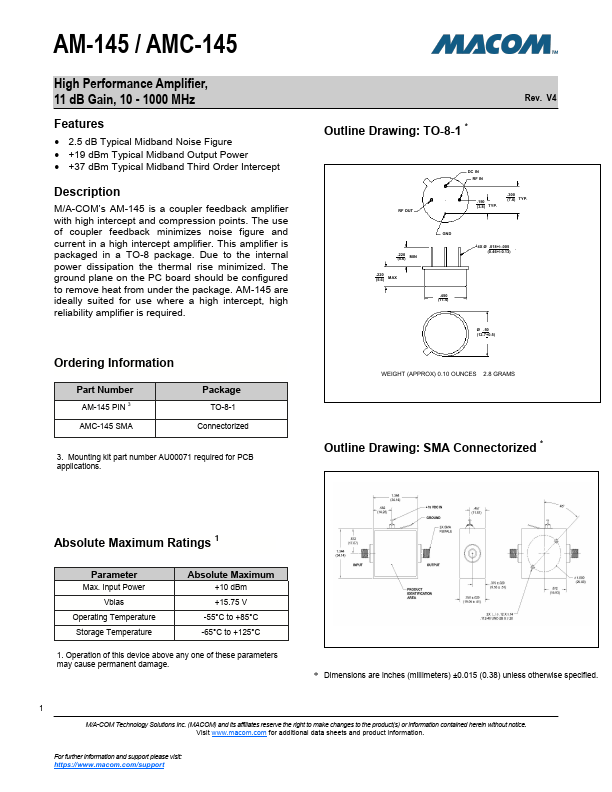

Datasheet preview – AMC-145

Datasheet Details

Part number AMC-145
Manufacturer MACOM
File Size 538.62 KB
Description High Performance Amplifier
Datasheet download datasheet AMC-145 Datasheet

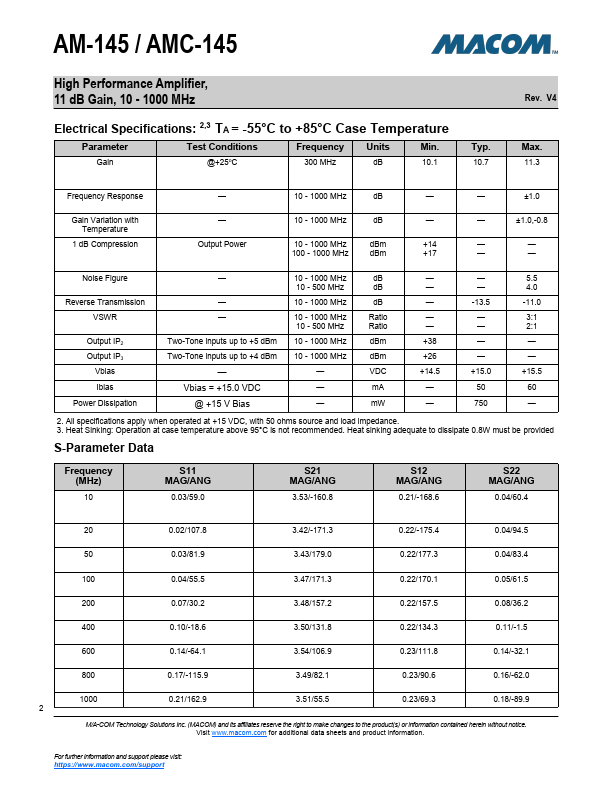

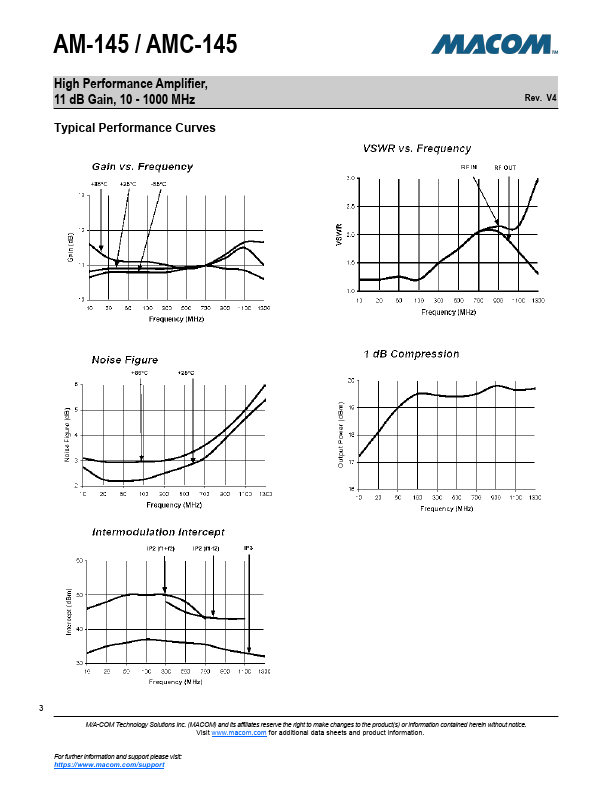

Additional preview pages of the AMC-145 datasheet.
