AMC-146 Datasheet PDF (High Performance Amplifier)

AMC-146 - High Performance Amplifier

Description

M/A-COM’s AM-146 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes current in a high intercept amplifier.

This amplifier is packaged in a flatpack with flanges.

Features

4 dB Typical Midband Noise Figure.
+38 dBm Typical Midband Third Order Intercept.
+24 dBm Typical Midband 1 dB Compression.

Datasheet Details

Part number	AMC-146
Manufacturer	MACOM
File Size	435.48 KB
Description	High Performance Amplifier
Datasheet	AMC-146 Datasheet
Additional preview pages of the AMC-146 datasheet.

📁 Similar Datasheet

AMC-100 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)

AMC-1000 - Processor Module (ADLINK)

AMC-101 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)

AMC-117 - Low Noise Amplifier (MA-COM)

AMC-119 - High Performance Amplifier (MA-COM)

AMC-123 - High Performance Amplifier (MA-COM)

AMC-132 - High Performance Amplifier (MA-COM)

AMC-134 - High Performance Amplifier (MA-COM)

AMC-136 - High Performance Amplifier (MA-COM)

AMC-138 - High Performance Amplifier (MA-COM)

Full PDF Text Transcription

Click to expand full text

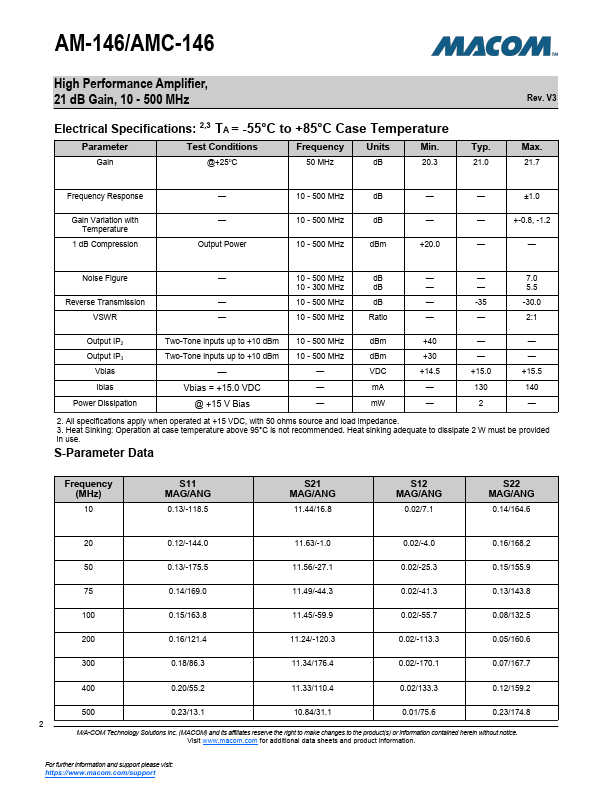

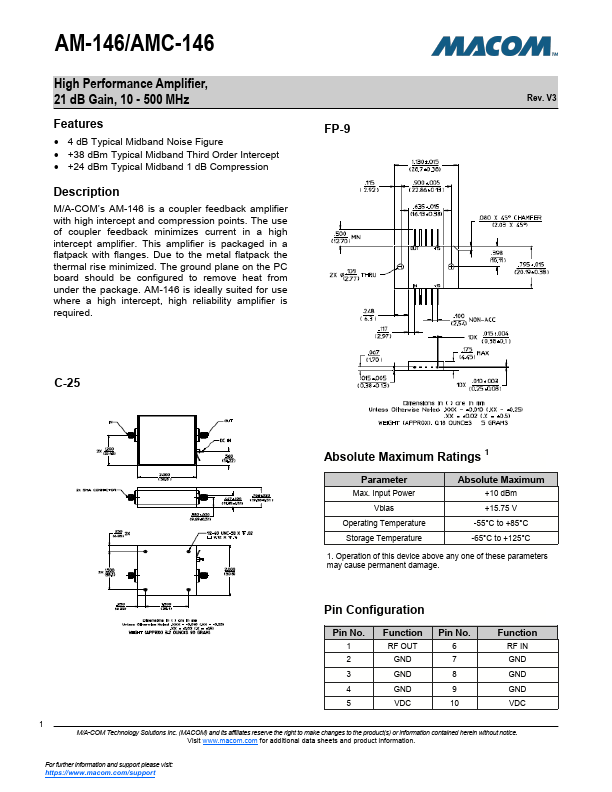

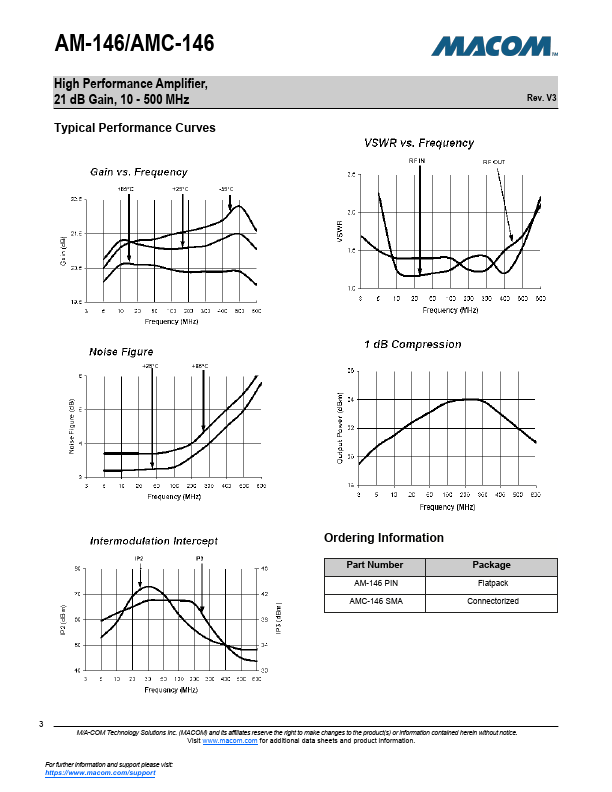

AM-146/AMC-146 High Performance Amplifier, 21 dB Gain, 10 - 500 MHz Features  4 dB Typical Midband Noise Figure  +38 dBm Typical Midband Third Order Intercept  +24 dBm Typical Midband 1 dB Compression Description M/A-COM’s AM-146 is a coupler feedback amplifier with high intercept and compression points. The use of coupler feedback minimizes current in a high intercept amplifier. This amplifier is packaged in a flatpack with flanges. Due to the metal flatpack the thermal rise minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-146 is ideally suited for use where a high intercept, high reliability amplifier is required. FP-9 Rev. V3 C-25 Absolute Maximum Ratings 1 Parameter Max.
