AMC-147 - Cascadable Amplifier

Description

M/A-COM’s AM-147 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a TO-8 package.

Features

  • HIGH POWER OUTPUT: +21 dBm (TYP. ).
  • HIGH THIRD ORDER IP3: +33 dBm (TYP. ).
  • HIGH.

📥 Download Datasheet

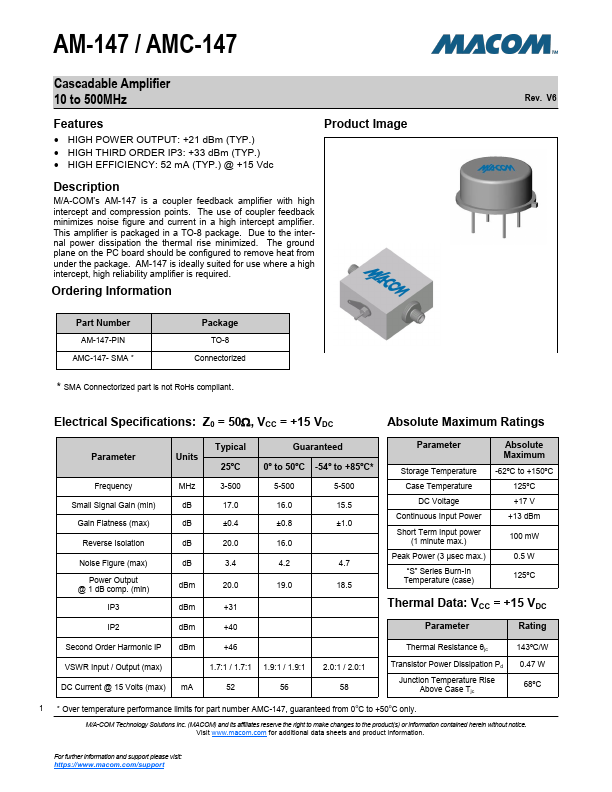

Datasheet preview – AMC-147

Datasheet Details

Part number AMC-147
Manufacturer MACOM
File Size 600.92 KB
Description Cascadable Amplifier
Datasheet download datasheet AMC-147 Datasheet

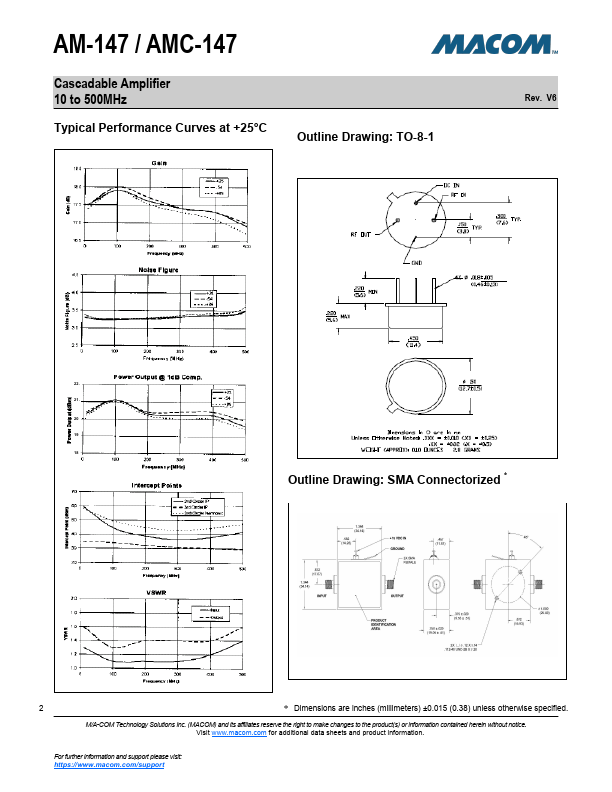

Additional preview pages of the AMC-147 datasheet.

📁 Similar Datasheet

  • AMC-100 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)
  • AMC-1000 - Processor Module (ADLINK)
  • AMC-101 - (AMC-100 / AMC-101) AC Motor Controllers (Indelac)
  • AMC-117 - Low Noise Amplifier (MA-COM)
  • AMC-119 - High Performance Amplifier (MA-COM)
  • AMC-123 - High Performance Amplifier (MA-COM)
  • AMC-132 - High Performance Amplifier (MA-COM)
  • AMC-134 - High Performance Amplifier (MA-COM)
  • AMC-136 - High Performance Amplifier (MA-COM)
  • AMC-138 - High Performance Amplifier (MA-COM)
Other Datasheets by MACOM
  • AMC-140 - High Performance Amplifier
  • AMC-142 - Low Noise Amplifier
  • AMC-143 - Low Noise Amplifier
  • AMC-145 - High Performance Amplifier
  • AMC-146 - High Performance Amplifier
  • AMC-151 - Cascadable Amplifier
  • AMC-182 - Cascadable Thin Film Amplifier
  • AMC-184 - Cascadable Thin Film Amplifier

Full PDF Text Transcription

Click to expand full text
AM-147 / AMC-147 Cascadable Amplifier 10 to 500MHz Features  HIGH POWER OUTPUT: +21 dBm (TYP.)  HIGH THIRD ORDER IP3: +33 dBm (TYP.)  HIGH EFFICIENCY: 52 mA (TYP.) @ +15 Vdc Product Image Description M/A-COM’s AM-147 is a coupler feedback amplifier with high intercept and compression points. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-147 is ideally suited for use where a high intercept, high reliability amplifier is required. Ordering Information Rev.
