NBSG11 - 2.5V/3.3V SiGe 1:2 Differential Clock Driver

Product Overview

ON Semiconductor

Part number	NBSG11
Manufacturer	ON Semiconductor
File Size	155.64 KB
Description	2.5V/3.3V SiGe 1:2 Differential Clock Driver
Datasheet	NBSG11 Datasheet

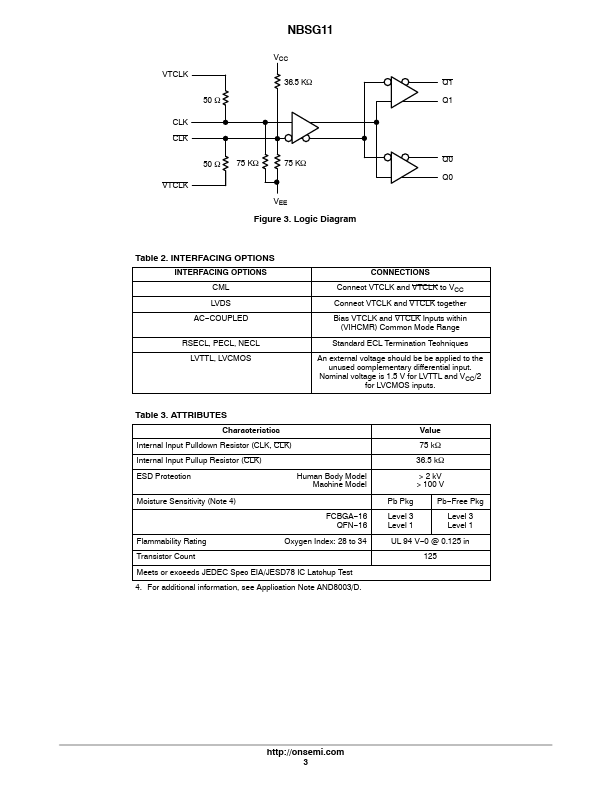

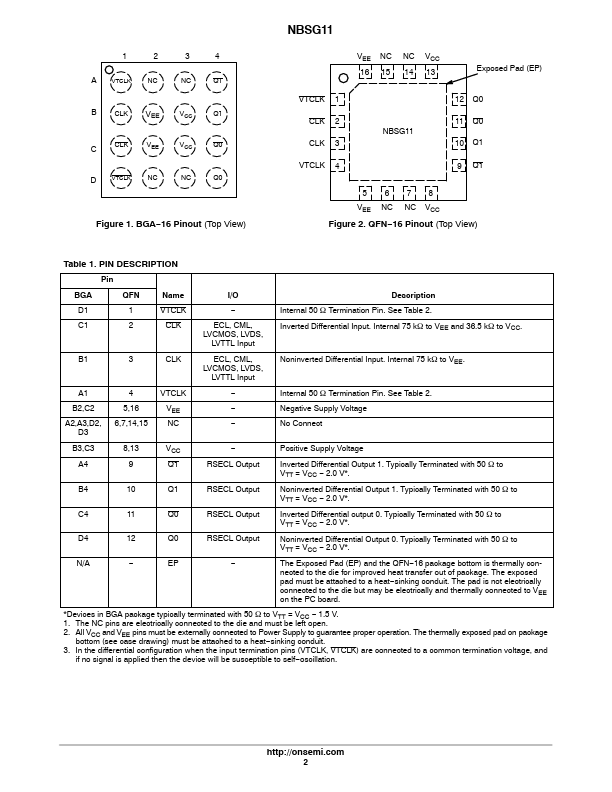

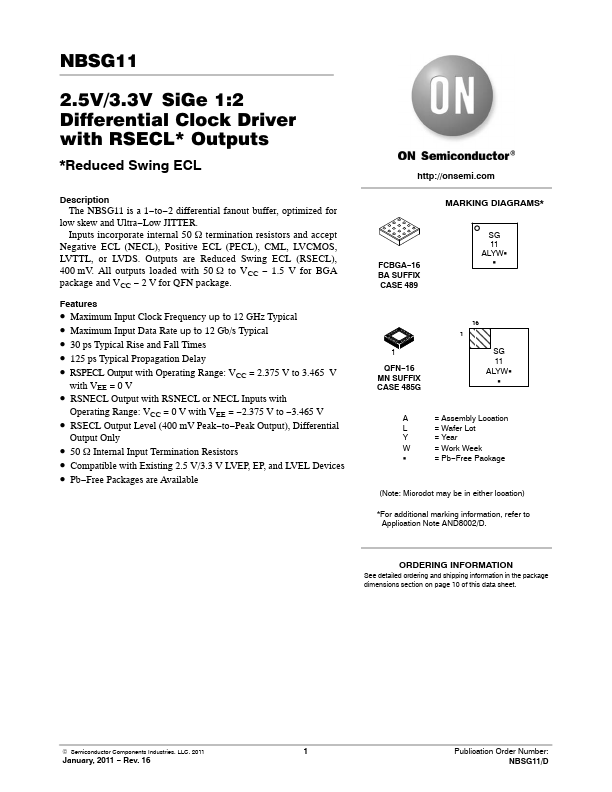

Additional preview pages of the NBSG11 datasheet.

The NBSG11 is a 1 to 2 differential fanout buffer, optimized for low skew and Ultra

Low JITTER.

Negative ECL (NECL), Positive ECL (PECL), CML, LVCMOS, LVTTL, or LVDS.

Maximum Input Clock Frequency up to 12 GHz Typical.
Maximum Input Data Rate up to 12 Gb/s Typical.
30 ps Typical Rise and Fall Times.
125 ps Typical Propagation Delay.
RSPECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V.
RSNECL Output with RSNECL or NECL Inputs with Operating Range: VCC = 0 V with VEE =.
2.375 V to.
3.465 V.
RSECL Output Level (400 mV Peak.
to.
Peak Output), Diff.
