Key Features
NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and "Specific". The "Specific" quality grade applies only to NEC Electronics products developed based on a customerdesignated "quality assurance program" for a specific.
Full PDF Text Transcription for 2SD1614 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1614. For precise diagrams, and layout, please refer to the original PDF.

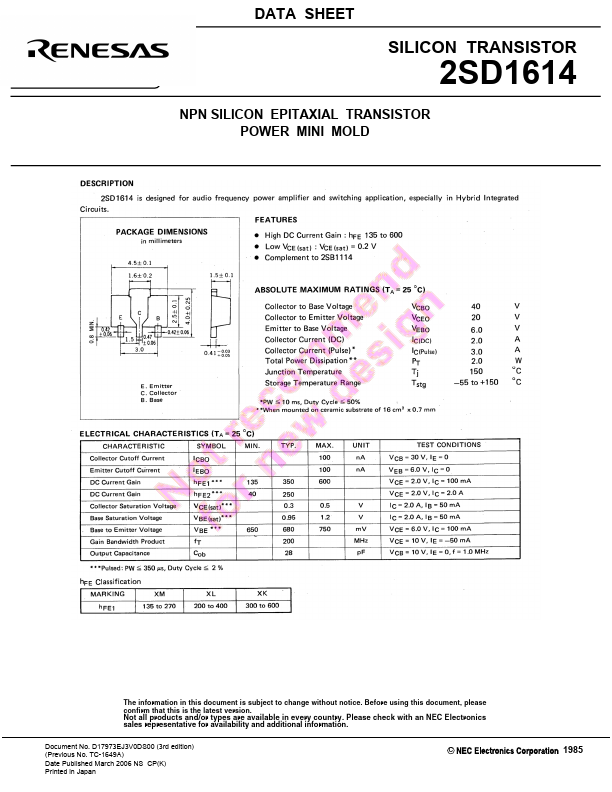

DATA SHEET SILICON TRANSISTOR 2SD1614 NPN SILICON EPITAXIAL TRANSISTOR POWER MINI MOLD The information in this document is subject to change without notice. Before using ...
View more extracted text

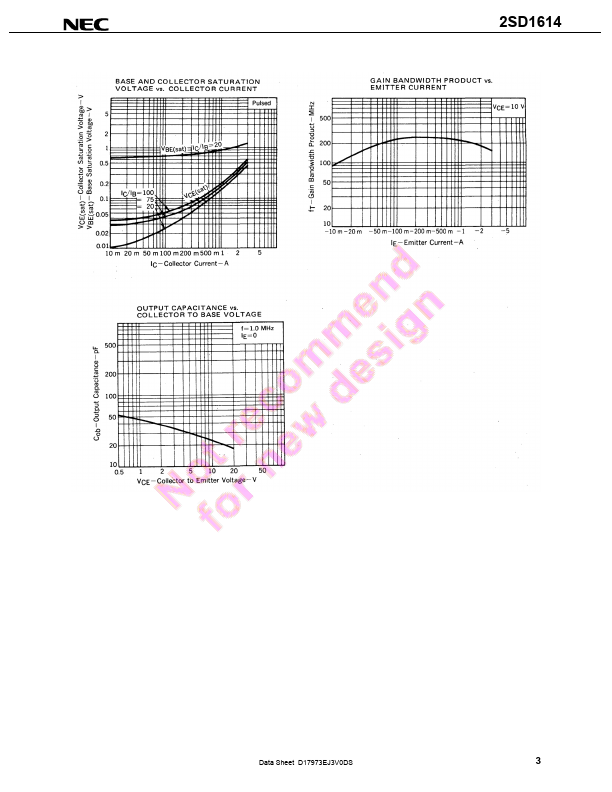

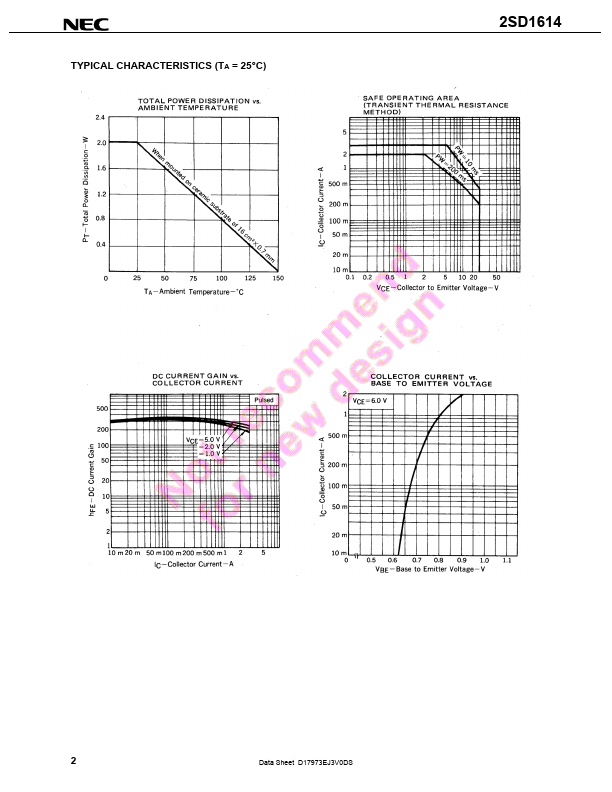

on in this document is subject to change without notice. Before using this document, please confirm that this is the latest version. Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information. Document No. D17973EJ3V0DS00 (3rd edition) c (Previous No. TC-1649A) Date Published March 2006 NS CP(K) Printed in Japan 1985 TYPICAL CHARACTERISTICS (TA = 25°C) 2SD1614 2 Data Sheet D17973EJ3V0DS 2SD1614 Data Sheet D17973EJ3V0DS 3 2SD1614 • The information in this document is current as of March, 2006. The information is subject
2SD1614 Datasheet
