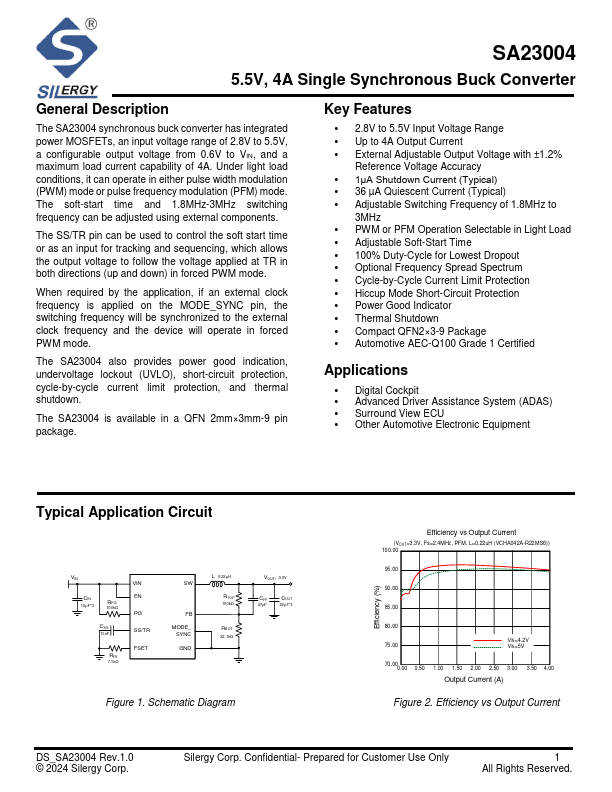

SA23004 Description
The SA23004 synchronous buck converter has integrated power MOSFETs, an input voltage range of 2.8V to 5.5V, a configurable output voltage from 0.6V to VIN, and a maximum load current capability of 4A. Under light load conditions, it can operate in either pulse width modulation (PWM) mode or pulse frequency modulation (PFM) mode. The soft-start time and 1.8MHz-3MHz switching frequency can be adjusted using external...
SA23004 Key Features
- 2.8V to 5.5V Input Voltage Range
- Up to 4A Output Current
- External Adjustable Output Voltage with ±1.2%
- 1μA Shutdown Current (Typical)
- 36 µA Quiescent Current (Typical)
- PWM or PFM Operation Selectable in Light Load
- Adjustable Soft-Start Time
- 100% Duty-Cycle for Lowest Dropout
- Optional Frequency Spread Spectrum
- Cycle-by-Cycle Current Limit Protection
