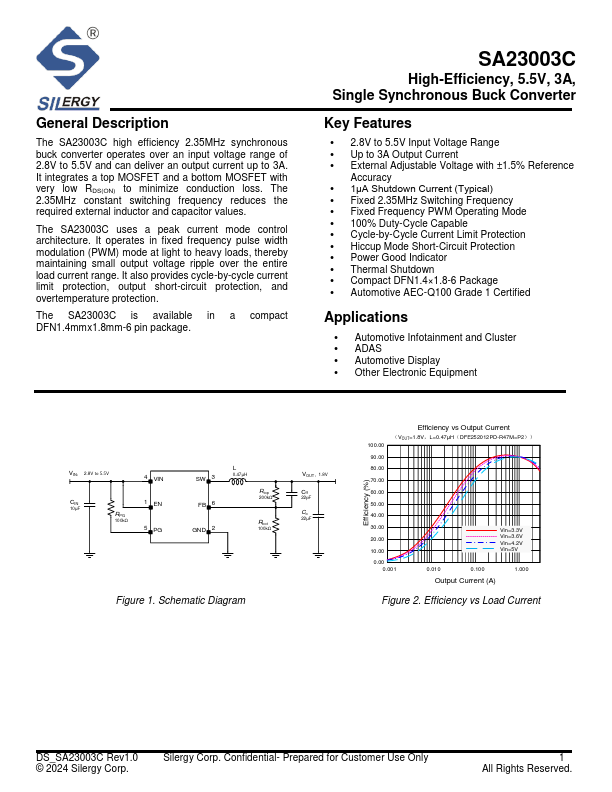

SA23003C
SA23003C is Single Synchronous Buck Converter manufactured by Silergy.
Description
The SA23003C high efficiency 2.35MHz synchronous buck converter operates over an input voltage range of 2.8V to 5.5V and can deliver an output current up to 3A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 2.35MHz constant switching frequency reduces the required external inductor and capacitor values.
The SA23003C uses a peak current mode control architecture. It operates in fixed frequency pulse width modulation (PWM) mode at light to heavy loads, thereby maintaining small output voltage ripple over the entire load current range. It also provides cycle-by-cycle current limit protection, output short-circuit protection, and overtemperature protection.
The SA23003C is available in a pact DFN1.4mmx1.8mm-6 pin package.
High-Efficiency, 5.5V, 3A, Single Synchronous Buck Converter
Key Features
- 2.8V to 5.5V Input Voltage Range
- Up to 3A Output Current
- External Adjustable Voltage with ±1.5% Reference
Accuracy
- 1μA Shutdown Current (Typical)
- Fixed 2.35MHz Switching Frequency
- Fixed Frequency PWM Operating Mode
- 100% Duty-Cycle Capable
- Cycle-by-Cycle Current Limit Protection
- Hiccup Mode Short-Circuit Protection
- Power Good Indicator
- Thermal Shutdown
- pact DFN1.4×1.8-6 Package
- Automotive AEC-Q100 Grade 1 Certified
Applications
- Automotive Infotainment and Cluster
- ADAS
- Automotive Display
- Other Electronic Equipment
VIN： 2.8V to 5.5V
4 VIN
10μF
10 0kΩ
1 EN 5 PG
SW 3 FB 6 GND 2
0.47μH
Rtop
20 0kΩ
Rbot
10...
