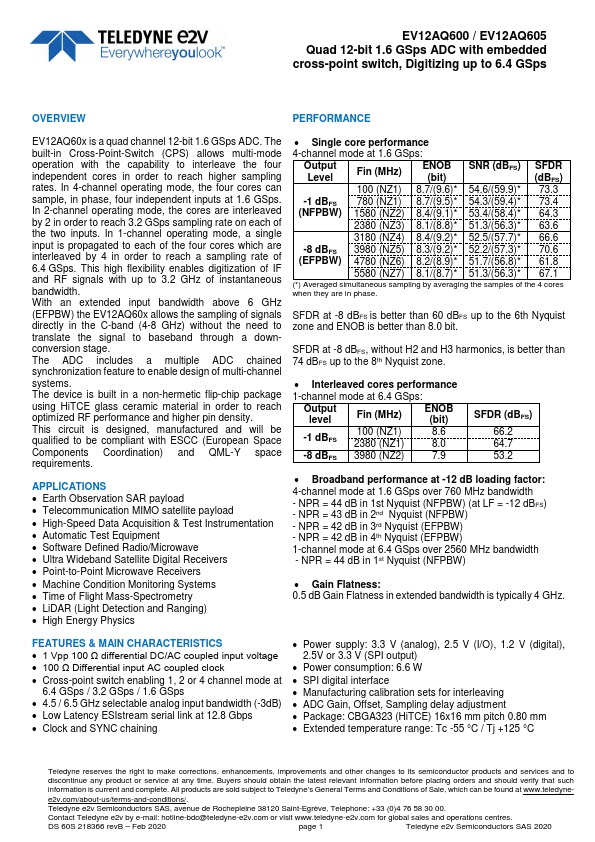

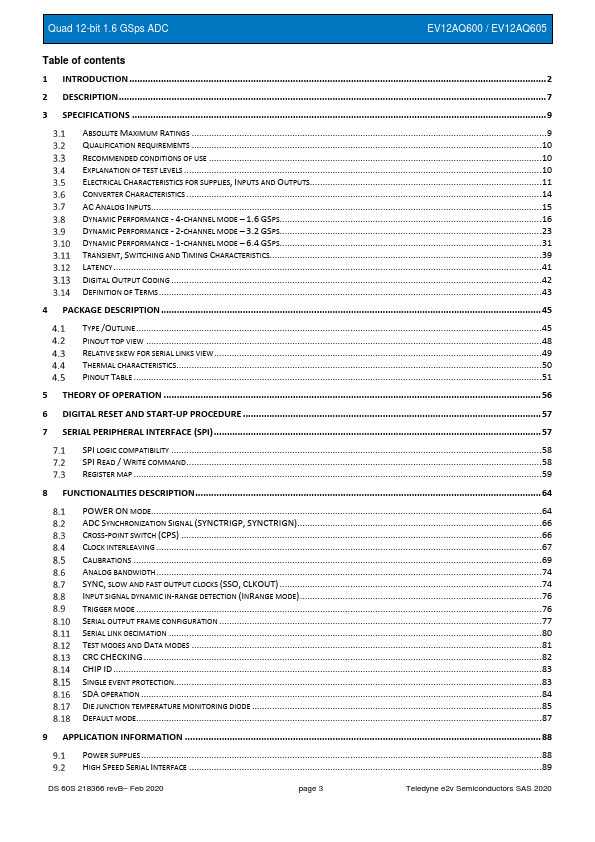

EV12AQ600 / EV12AQ605 Quad 12-bit 1.6 GSps ADC with embedded cross-point switch, Digitizing up to 6.4 GSps OVERVIEW PERFORMANCE EV12AQ60x is a quad channel 12-bit 1.6 GSps ADC. The built-in Cross-Point-Switch (CPS) allows multi-mode operation with the capability to interleave the four independent cores in order to reach higher sampling rates. In 4-channel operating mode, the four cores can sample, in phase, four independent inputs at 1.6 GSps. In 2-channel operating mode, the cores are interleaved by 2 in order to reach 3.2 GSps sampling rate on each of the two inputs. In 1-channel operating mode, a single input is propagated to each of the four cores which are interleaved by 4 in order to reach a sampling rate of 6.4 GSps. This high flexibility enables digitization of IF and RF signals with up to 3.2 GHz of instantaneous bandwidth. With an extended input bandwidth above 6 GHz (EFPBW) the EV12AQ60x allows the sampling of signals directly in the C-band (4-8 GHz) without the need to translate the signal to baseband through a downconversion stage. The ADC includes a multiple ADC chained synchronization feature to enable design of multi-channel systems. The device is built in a non-hermetic flip-chip package using Hi TCE glass ceramic material in order to reach optimized RF performance and higher pin density. This circuit is designed, manufactured and will be qualified to be pliant with ESCC (European Space ponents Coordination) and QML-Y space requirements. - Single core performance 4-channel mode at 1.6 GSps: Output Level Fin (MHz) ENOB SNR (d BFS) SFDR (bit) (d BFS) 100 (NZ1) 8.7/(9.6)- 54.6/(59.9)- 73.3 -1 d BFS 780 (NZ1) 8.7/(9.5)- 54.3/(59.4)- 73.4 (NFPBW) 1580 (NZ2) 8.4/(9.1)- 53.4/(58.4)- 64.3 2380 (NZ3) 8.1/(8.8)- 51.3/(56.3)- 63.6 3180 (NZ4) 8.4/(9.2)- 52.5/(57.7)- 66.6 -8 d BFS 3980 (NZ5) 8.3/(9.2)- 52.2/(57.3)- 70.6 (EFPBW) 4780 (NZ6) 8.2/(8.9)- 51.7/(56.8)- 61.8 5580 (NZ7) 8.1/(8.7)- 51.3/(56.3)- 67.1 (- ) Averaged simultaneous sampling...
