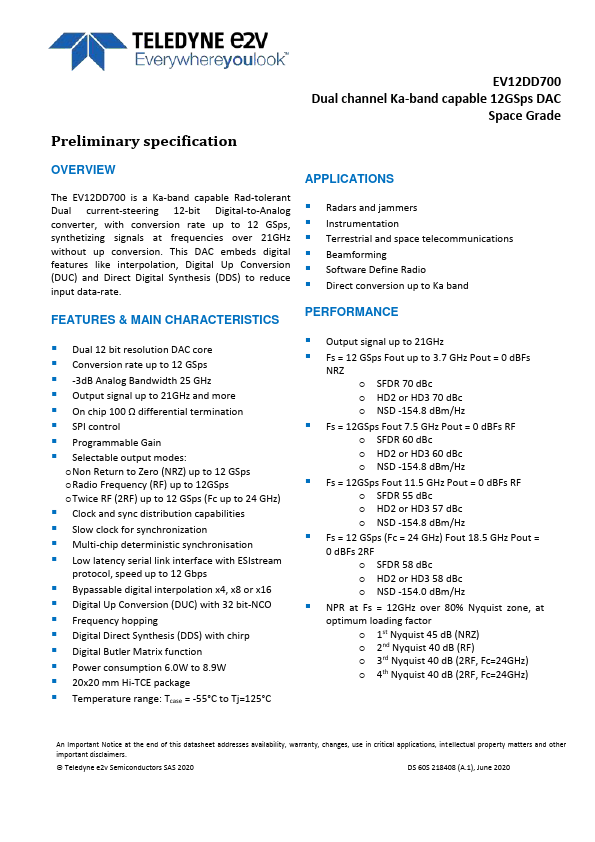

Preliminary specification EV12DD700 Dual channel Ka-band capable 12GSps DAC Space Grade OVERVIEW The EV12DD700 is a Ka-band capable Rad-tolerant Dual current-steering 12-bit Digital-to-Analog converter, with conversion rate up to 12 GSps, synthetizing signals at frequencies over 21GHz without up conversion. This DAC embeds digital Features like interpolation, Digital Up Conversion (DUC) and Direct Digital Synthesis (DDS) to reduce input data-rate. Features & MAIN CHARACTERISTICS - Dual 12 bit resolution DAC core - Conversion rate up to 12 GSps - -3d B Analog Bandwidth 25 GHz - Output signal up to 21GHz and more - On chip 100 Ω differential termination - SPI control - Programmable Gain - Selectable output modes: o Non Return to Zero (NRZ) up to 12 GSps o Radio Frequency (RF) up to 12GSps o Twice RF (2RF) up to 12 GSps (Fc up to 24 GHz) - Clock and sync distribution capabilities - Slow clock for synchronization - Multi-chip deterministic synchronisation - Low latency serial link interface with ESIstream protocol, speed up to 12 Gbps - Bypassable digital interpolation x4, x8 or x16 - Digital Up Conversion (DUC) with 32 bit-NCO - Frequency hopping - Digital Direct Synthesis (DDS) with chirp - Digital Butler Matrix function - Power consumption 6.0W to 8.9W - 20x20 mm Hi-TCE package - Temperature range: Tcase = -55°C to Tj=125°C APPLICATIONS - Radars and jammers - Instrumentation...
