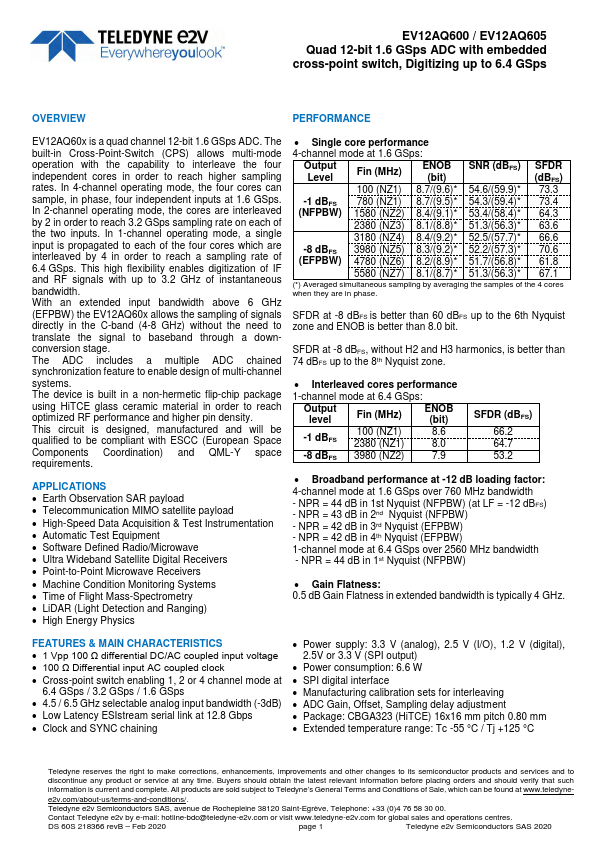

EV12AQ605 Description
The built-in Cross-Point-Switch (CPS) allows multi-mode operation with the capability to interleave the four independent cores in order to reach higher sampling rates. In 4-channel operating mode, the four cores can sample, in phase, four independent inputs at 1.6 GSps. In 2-channel operating mode, the cores are interleaved by 2 in order to reach 3.2 GSps sampling rate on each of the two inputs.
