RN2302 Datasheet Silicon PNP Epitaxial Type Transistors

Manufacturer: Toshiba

Overview: RN2301 to RN2306 Bipolar Transistors Silicon PNP Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN2301/02/03/04/05/06 1. Applications • Switching • Inverter Circuits • Interfacing • Driver Circuits 2.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

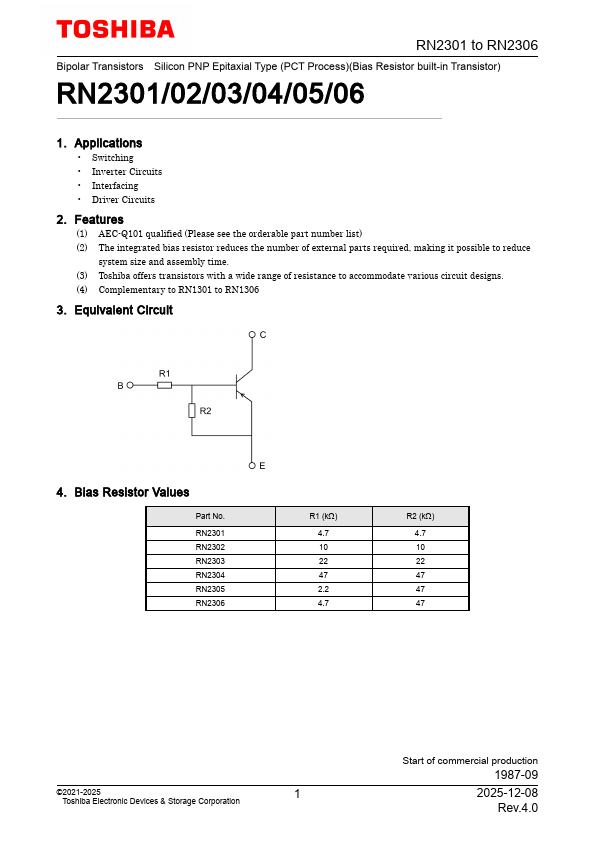

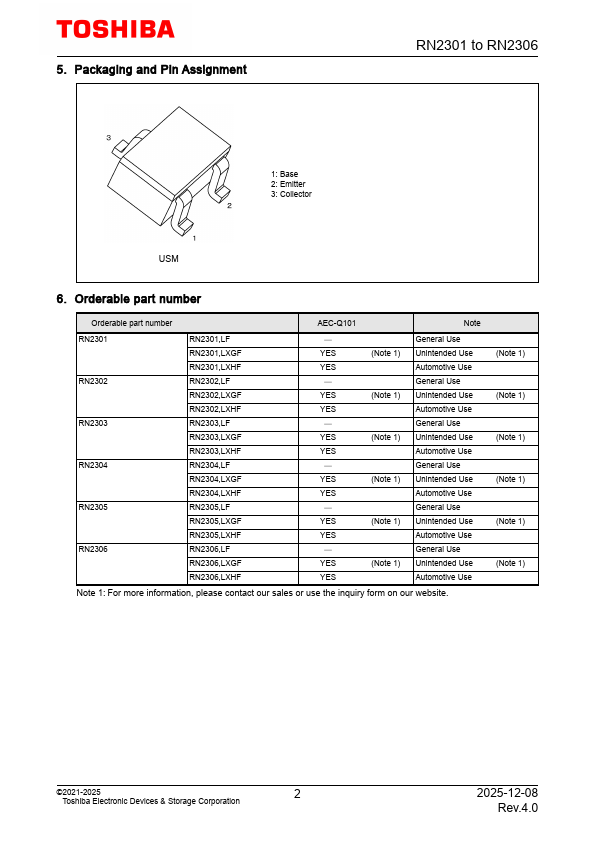

  • (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN1301 to RN1306 3. Equivalent Circuit 4. Bias Resistor Values Part No. RN2301 RN2302 RN2303 RN2304 RN2305 RN2306 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 47.
