AZ983 - 80 AMP AUTOMOTIVE RELAY

ZETTLER

Key Features

80 Amp contact rating.
High momentary carry current.
High operating temperature (85°C).
SPST N. O. (1 Form A), SPDT (1 Form C), SPST N. C. (1 Form B).
PCB terminals.
Epoxy sealed version available.

AZ983 80 amp automotive relay by ZETTLER - Datasheet Preview

Datasheet Details

Part number	AZ983
Manufacturer	ZETTLER
File Size	52.05 KB
Description	80 AMP AUTOMOTIVE RELAY
Datasheet	AZ983 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ9812-01F	TVS	msksemi
AZ9812-01F	TVS Diode	Leiditech
AZ9841	RELAY	American Zettler
AZ9891	RELAY	American Zettler
AZ9143-04F	TVS DIODE	Leiditech

Other Datasheets by ZETTLER

Part Number	Description
AZ980	80 AMP AUTOMOTIVE RELAY
AZ987	30 AMP MICRO AUTOMOTIVE RELAY
AZ9201	ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ921	ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9371	SENSITIVE SUBMINIATURE RELAY

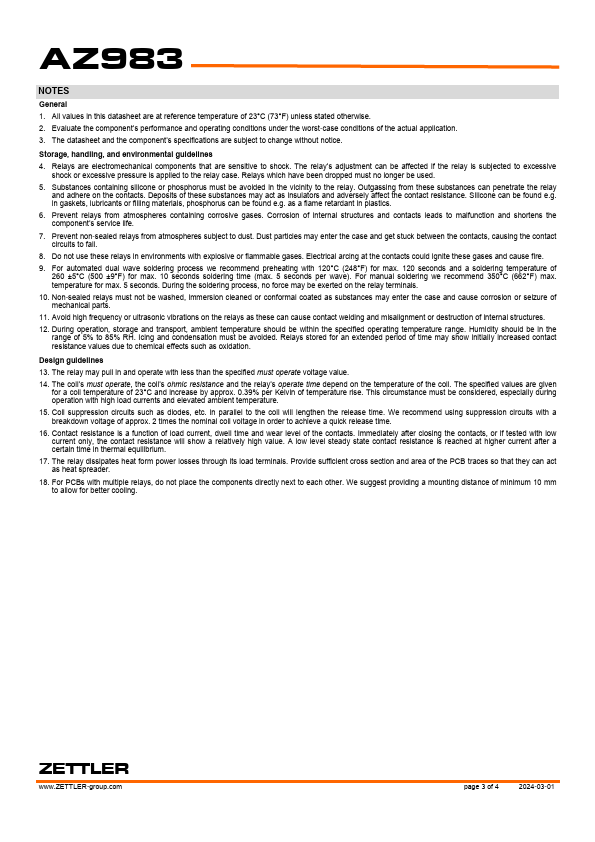

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

AZ983 80 AMP AUTOMOTIVE RELAY FEATURES • 80 Amp contact rating • High momentary carry current • High operating temperature (85°C) • SPST N.O. (1 Form A), SPDT (1 Form C), SPST N.C. (1 Form B) • PCB terminals • Epoxy sealed version available CONTACTS Arrangement SPST (1 Form A) SPST (1 Form B) SPDT (1 Form C) Ratings Resistive load: 1 Form A Max. switched power: 1120 W Max. switched current: 80 A Max. switched voltage: 28 VDC 1 Form B Max. switched power: 840 W Max. switched current: 60 A Max. switched voltage: 28 VDC 1 Form C Rated Load Max. switched power: 840 W Max. switched current: 60 A Max.
