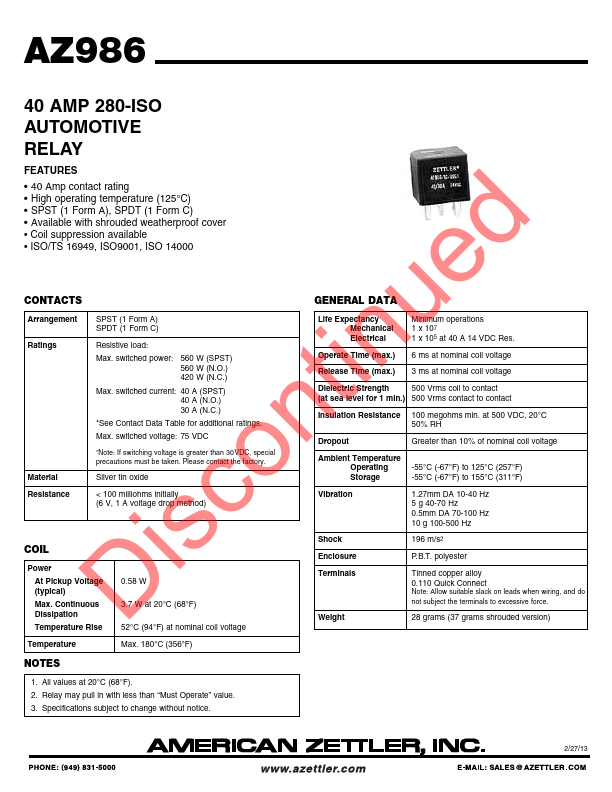

Datasheet Summary
40 AMP 280-ISO AUTOMOTIVE RELAY
Features
- 40 Amp contact rating
- High operating temperature (125°C)
- SPST (1 Form A), SPDT (1 Form C)
- Available with shrouded weatherproof cover
- Coil suppression available d
- ISO/TS 16949, ISO9001, ISO 14000 e CONTACTS
Arrangement u Ratings ntin Material o Resistance
SPST (1 Form A) SPDT (1 Form C)
Resistive load: Max. switched power: 560 W (SPST)
560 W (N.O.) 420 W (N.C.) Max. switched current: 40 A (SPST) 40 A (N.O.) 30 A (N.C.)
- See Contact Data Table for additional ratings. Max. switched voltage: 75 VDC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
Silver tin oxide
<...
