AO4454 100V N-Channel MOSFET

AO4454 Description

AO4454 100V N-Channel MOSFET SDMOS TM General .
The AO4454 is fabricated with SDMOSTM trench technology that combines excellent RDS(ON) with low gate charge.

AO4454 Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 7V) 100V 6.5A < 36mΩ < 43mΩ 100% UIS Tested 100% Rg Tested SOIC-8 Top View D D D D Bottom View D G S S S G S Absolute Maximum Ratings TA=25° C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Sourc

📥 Download Datasheet

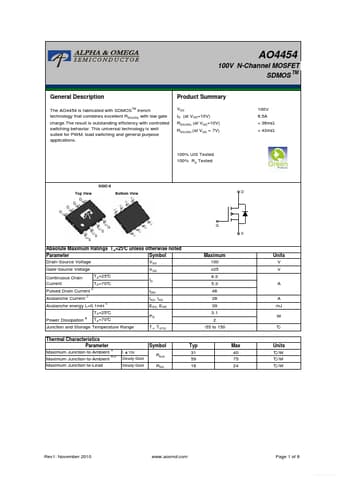

Preview of AO4454 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AO4454
Manufacturer
Alpha & Omega Semiconductors
File Size
300.68 KB
Datasheet
AO4454_AlphaOmegaSemiconductors.pdf
Description
100V N-Channel MOSFET
