2N2222 - NPN SILICON PLANAR SWITCHING TRANSISTORS

This page provides the datasheet information for the 2N2222, a member of the 2N2221 NPN SILICON PLANAR SWITCHING TRANSISTORS family.

Datasheet Summary

Description

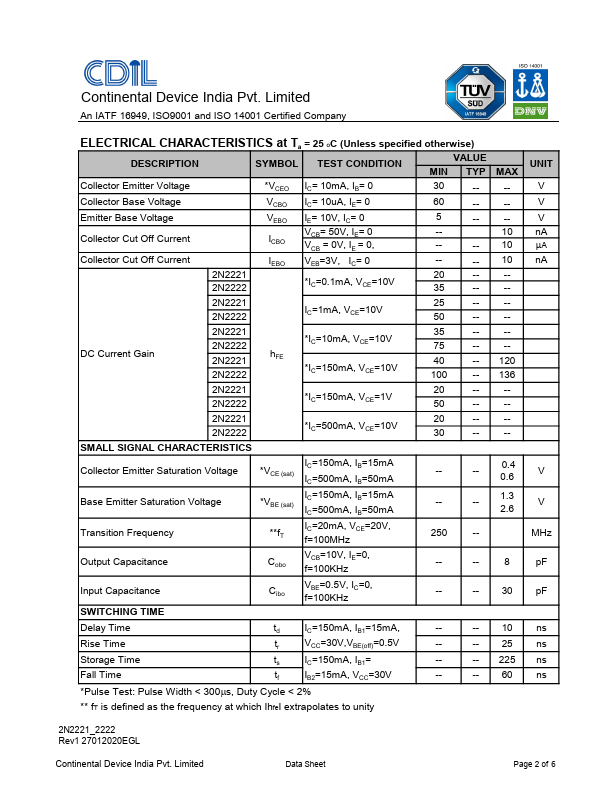

SYMBOL TEST CONDITION VALUE MIN TYP MAX Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Cut Off Current Collector Cut Off Current 2N2221 2N2222 VCEO VCBO VEBO ICBO IEBO IC= 10mA, IB= 0 IC= 10uA, IE= 0 IE= 10V, IC= 0 VCB= 50V, IE= 0 VCB = 0V, IE = 0, VEB=3V,

📥 Download Datasheet

Datasheet preview – 2N2222

Datasheet Details

Part number 2N2222
Manufacturer CDIL
File Size 1.32 MB
Description NPN SILICON PLANAR SWITCHING TRANSISTORS
Datasheet download datasheet 2N2222 Datasheet

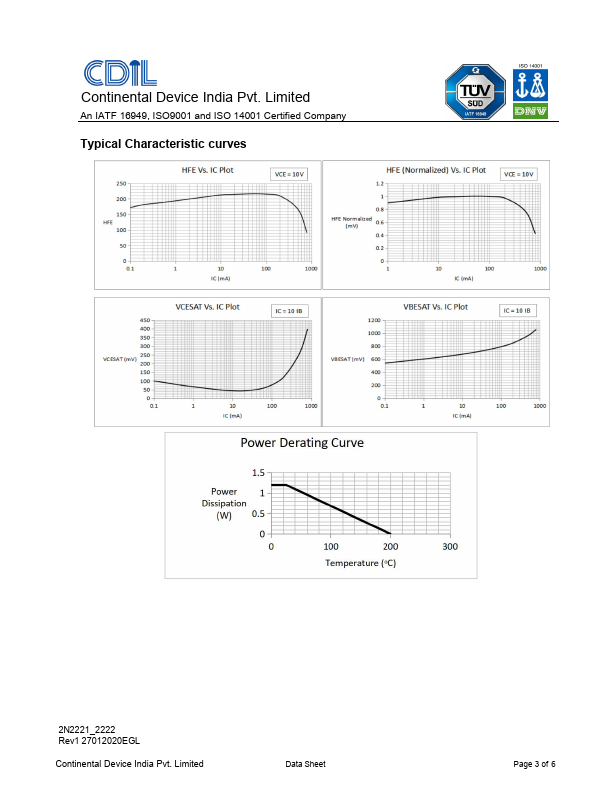

Additional preview pages of the 2N2222 datasheet.

📁 Similar Datasheet

  • 2N2222 - NPN Silicon Transistor (SEMTECH)
  • 2N2222 - NPN Amplifier Transistor (ON Semiconductor)
  • 2N2222 - Bipolar NPN Device (Seme LAB)
  • 2N2222 - NPN Switching Transistors (MCC)
  • 2N2222 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2N2222 - HIGH-SPEED SWITCHES (STMicroelectronics)
  • 2N2222 - Switching Silicon Transistors (Comset Semiconductor)
  • 2N2222 - SILICON NPN TRANSISTORS (Central)
  • 2N2222 - Low Power Bipolar Transistors (Multicomp)
  • 2N2222A - NPN Silicon Transistor (SEMTECH)
Other Datasheets by CDIL
  • 2N2222A - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2221 - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2221A - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2218 - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2218A - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2219 - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2219A - NPN SILICON PLANAR SWITCHING TRANSISTORS
  • 2N2270 - NPN Silicon Planar Transistor

Full PDF Text Transcription

Click to expand full text

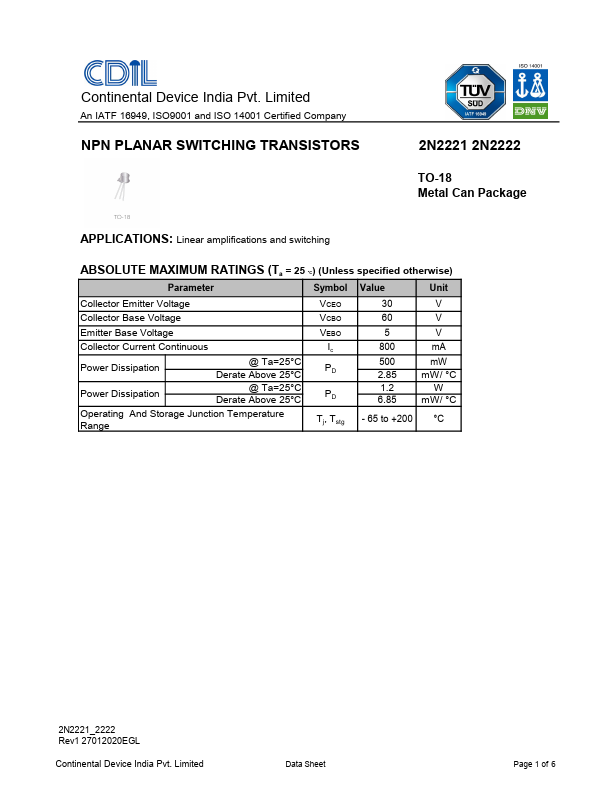

Continental Device India Pvt. Limited An IATF 16949, ISO9001 and ISO 14001 Certified Company NPN PLANAR SWITCHING TRANSISTORS 2N2221 2N2222 TO-18 Metal Can Package APPLICATIONS: Linear amplifications and switching ABSOLUTE MAXIMUM RATINGS (Ta = 25 )°C (Unless specified otherwise) Parameter Symbol Value Unit Collector Emitter Voltage VCEO 30 V Collector Base Voltage VCBO 60 V Emitter Base Voltage VEBO 5 V Collector Current Continuous Power Dissipation Power Dissipation @ Ta=25°C Derate Above 25°C @ Ta=25°C Derate Above 25°C Operating And Storage Junction Temperature Range Ic PD PD Tj, Tstg 800 500 2.85 1.2 6.85 mA mW mW/ °C W mW/ °C - 65 to +200 °C 2N2221_2222 Rev1 27012020EGL Continental Device India Pvt.
