HM4622Q Datasheet - H&M Semiconductor

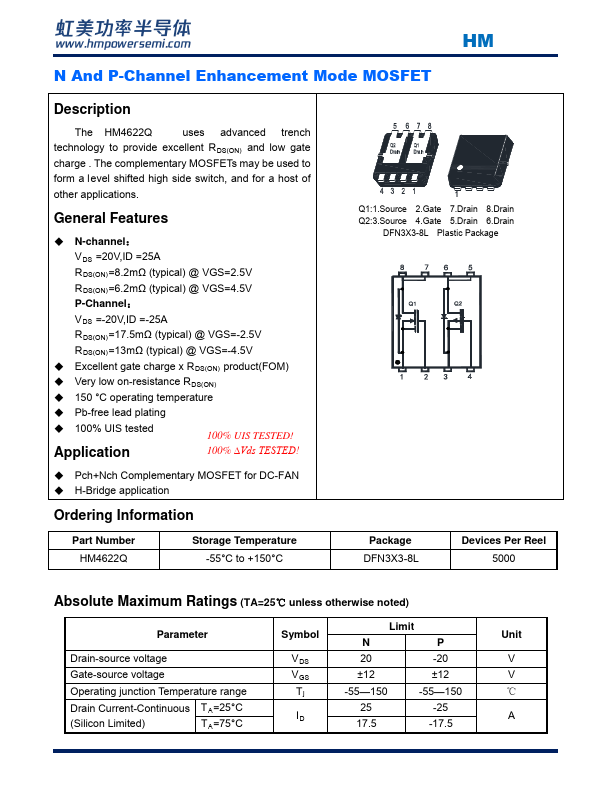

HM4622Q N And P-Channel Enhancement Mode MOSFET

HM4622Q Features

* N-channel： VDS =20V,ID =25A RDS(ON)=8.2mΩ (typical) @ VGS=2.5V RDS(ON)=6.2mΩ (typical) @ VGS=4.5V P-Channel： VDS =-20V,ID =-25A RDS(ON)=17.5mΩ (typical) @ VGS=-2.5V RDS(ON)=13mΩ (typical) @ VGS=-4.5V

* Excellent gate charge x RDS(ON) product(FOM)

* Very low on-resistance RDS(ON)

HM4622Q Datasheet (805.94 KB)

HM4622Q Datasheet Preview — Preview of HM4622Q PDF

Datasheet Details

Part number:

HM4622Q

Manufacturer:

H&M Semiconductor

File Size:

805.94 KB

Description:

N and p-channel enhancement mode mosfet.
