SY88823V - CML LOW-POWER LIMITING POST AMPLIFIER

Description

The SY88823V low-power, limiting post amplifier is designed for use in fiber optic receivers.

The device connects to typical transimpedance amplifiers (TIAs).

The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time.

Features

  • Multi-rate up to 3.2Gbps operation Wide gain-bandwidth product.
  • 38dB differential gain.
  • 2GHz 3dB bandwidth Low noise 50Ω CML data outputs.
  • 800mVpp output swing.
  • 60ps edge rates.
  • 5psrms typ. random jitter.
  • 15pspp typ. deterministic jitter Chatter-free, Signal-Detect (SD) output.
  • 4.6dB electrical hysteresis.
  • OC-TTL output with internal 4.75kΩ pull-up resistor Programmable SD sensitivity using single external resistor Integrate.

📥 Download Datasheet

Datasheet Details

Part number SY88823V
Manufacturer Micrel Semiconductor
File Size 148.46 KB
Description CML LOW-POWER LIMITING POST AMPLIFIER
Datasheet download datasheet SY88823V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY8881 1A Synchronous Step Down Regulator Silergy
SY8883 Synchronous Step Down Regulator Silergy
SY8801 Bluetooth headset smart charging case solution TPS
SY8802 Bluetooth headset smart charging case solution TPS
SY8803 Bluetooth headset smart charging case solution TPS

Other Datasheets by Micrel Semiconductor

Part Number Description
SY88822V LASER DIODE DRIVER
SY88802 LASER DIODE DRIVER
SY88803V PECL LOW POWER LIMITING POST AMPLIFIER
SY88843V 3.3V/5V 3.2Gbps CML LOW-POWER LIMITING POST AMPLIFIER
SY88883V CML LOW-POWER LIMITING POST AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

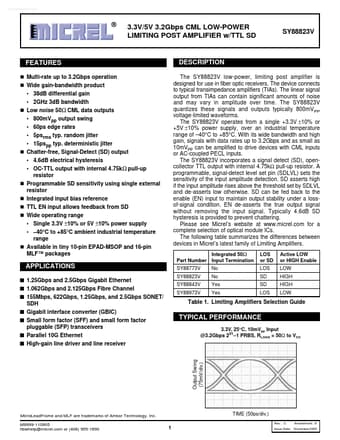

www.DataSheet4U.com Micrel, Inc. 3.3V/5V 3.2Gbps CML LOW-POWER LIMITING POST AMPLIFIER w/TTL SD SY88823V SY88823V FEATURES Multi-rate up to 3.2Gbps operation Wide gain-bandwidth product • 38dB differential gain • 2GHz 3dB bandwidth Low noise 50Ω CML data outputs • 800mVpp output swing • 60ps edge rates • 5psrms typ. random jitter • 15pspp typ. deterministic jitter Chatter-free, Signal-Detect (SD) output • 4.6dB electrical hysteresis • OC-TTL output with internal 4.75kΩ pull-up resistor Programmable SD sensitivity using single external resistor Integrated input bias reference TTL EN input allows feedback from SD Wide operating range • Single 3.
