2SD1751 Silicon NPN triple diffusion planar type Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

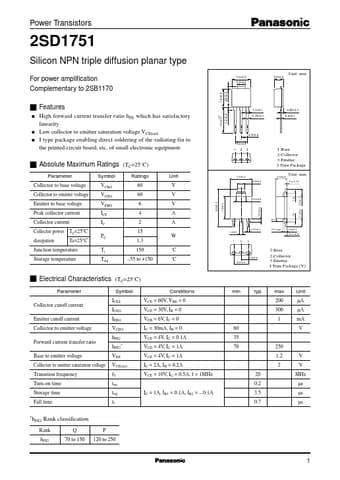

Power Transistors 2SD1751 Silicon NPN triple diffusion planar type For power amplification Complementary to 2SB1170 7.0±0.3 3.0±0.2 3.5±0.2 Unit: mm.

📥 Download Datasheet

Preview of 2SD1751 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SD1751
Manufacturer
Panasonic Semiconductor
File Size
49.00 KB
Datasheet
2SD1751_PanasonicSemiconductor.pdf
Description
Silicon NPN triple diffusion planar type Transistor

Features

* q q 10.0
* 0. +0.3 7.2±0.3 0.8±0.2 1.1±0.1 0.85±0.1 0.4±0.1 q High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) I type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of
