2SD1354 Silicon NPN Transistor

2SD1354 Description

SILICON NPN TRIPLE DIFFUSED TYPE 2SD1354 AUDIO FREQUENCY POWER AMPLIFIER APPLICATIONS..

2SD1354 Features

* . High DC Current Gain : hFE=300(Max. ) (VcE=5V, Ic=0.5A) . Low Saturation Voltage : VC E(sat)=l-0V(Max. )(I C=3A, I B=0.3A) . High Power Dissipation : P C=30W (Tc=25 P C) . Complementary to 2SB994 Unit in mm 03.2±O.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Volt

📥 Download Datasheet

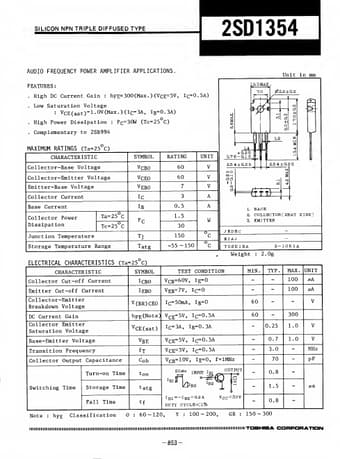

Preview of 2SD1354 PDF
datasheet Preview Page 2
