ATF20V8C - High- Performance EE PLD

Datasheet Summary

Description

The ATF20V8C is a high-performance CMOS (electricallyerasable) programmable logic device (PLD) that utilize Atmel's proven electrically-erasable Flash memory technology.

Speeds down to 5 ns and power dissipation as low as 10 µA are offered.

Features

  • User-controlled Power-down Pin High-speed Equivalent of ATF20V8B Pin-controlled Zero Standby Power (10 µA Typical) Option Industry-standard Architecture.
  • Emulates Many 24-pin PALs®.
  • Low-cost Easy-to-use Software Tools High-speed Electrically-erasable Programmable Logic Devices.
  • 5 ns Maximum Pin-to-pin Delay CMOS and TTL Compatible Inputs and Outputs.
  • Latch Feature Hold Outputs to P.

📥 Download Datasheet

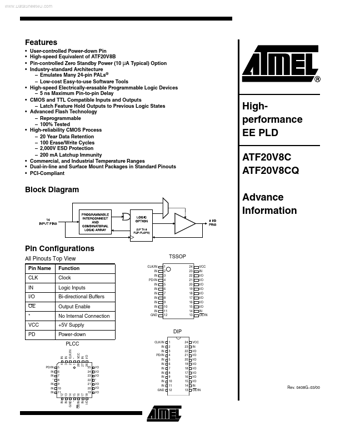

Datasheet preview – ATF20V8C

Datasheet Details

Part number ATF20V8C
Manufacturer ATMEL Corporation
File Size 92.81 KB
Description High- Performance EE PLD
Datasheet download datasheet ATF20V8C Datasheet
Additional preview pages of the ATF20V8C datasheet.
