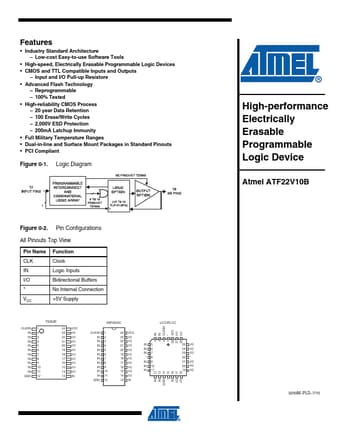

Features
• Industry Standard Architecture – Low-cost Easy-to-use Software Tools
• High-speed, Electrically Erasable Programmable Logic Devices • CMOS and TTL Compatible Inputs and Outputs
– Input and I/O Pull-up Resistors • Advanced Flash Technology
– Reprogrammable – 100% Tested • High-reliability CMOS Process – 20 year Data Retention – 100 Erase/Write Cycles – 2,000V ESD Protection – 200mA Latchup Immunity • Full Military Temperature Ranges • Dual-in-line and Surface Mount Packages in Standard Pinouts • PCI Compliant
Figure 0-1. Logic Diagram
Figure 0-2.
ATF22V10B Datasheet
