ATF22V10C - High-performance Electrically Erasable Programmable Logic Device

This page provides the datasheet information for the ATF22V10C, a member of the ATF22V10CQ High-performance Electrically Erasable Programmable Logic Device family.

Datasheet Summary

Features

Industry-standard Architecture.
Low-cost, Easy-to-use Software Tools.
High-speed, Electrically Erasable Programmable Logic Devices.
5ns Maximum Pin-to-pin Delay.
Latch Feature Holds Inputs to Previous Logic States.
Pin-controlled Standby Power (10µA Typical).
Advanced Flash Technology.
Reprogrammable.
100% Tested.
High-reliability CMOS Process.
20-year Data Retention.
100 Erase/Write Cycl.

Datasheet Details

Part number	ATF22V10C
Manufacturer	ATMEL
File Size	598.14 KB
Description	High-performance Electrically Erasable Programmable Logic Device
Datasheet	ATF22V10C Datasheet

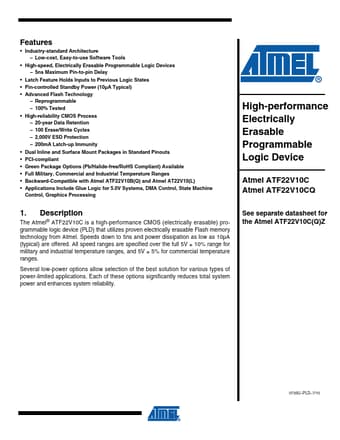

Additional preview pages of the ATF22V10C datasheet.

📁 Similar Datasheet

ATF22V10CQ - High-performance Electrically Erasable Programmable Logic Device (ATMEL Corporation)

ATF22V10CZ - High-performance Electrically Erasable Programmable Logic Device (ATMEL Corporation)

ATF22LV10C - High-performance Electrically Erasable Programmable Logic Device (ATMEL Corporation)

ATF22LV10CZ - High-performance Electrically Erasable Programmable Logic Device (ATMEL Corporation)

ATF20V8C - High- Performance EE PLD (ATMEL Corporation)

ATF20V8CQ - High- Performance EE PLD (ATMEL Corporation)

ATF280E - Rad Hard Reprogrammable FPGA (ATMEL Corporation)

ATF-10100 - 0.5-12 GHz Low Noise Gallium Arsenide FET (HP)

ATF-10136 - 0.5-12 GHz Low Noise Gallium Arsenide FET (Agilent)

ATF-10236 - 0.5-12 GHz Low Noise Gallium Arsenide FET (HP)

Full PDF Text Transcription

Click to expand full text

Features • Industry-standard Architecture – Low-cost, Easy-to-use Software Tools • High-speed, Electrically Erasable Programmable Logic Devices – 5ns Maximum Pin-to-pin Delay • Latch Feature Holds Inputs to Previous Logic States • Pin-controlled Standby Power (10µA Typical) • Advanced Flash Technology – Reprogrammable – 100% Tested • High-reliability CMOS Process – 20-year Data Retention – 100 Erase/Write Cycles – 2,000V ESD Protection – 200mA Latch-up Immunity • Dual Inline and Surface Mount Packages in Standard Pinouts • PCI-compliant • Green Package Options (Pb/Halide-free/RoHS Compliant) Available • Full Military, Commercial and Industrial Temperature Ranges • Backward-Compatible with Atmel ATF22V10B(Q) and Atmel AT22V10(L) • Applications Include Glue Logic for 5.
