ATF22V10CZ - High-performance Electrically Erasable Programmable Logic Device

Datasheet Summary

Description

The Atmel® ATF22V10CZ/CQZ is a high-performance CMOS (electrically erasable) programmable logic device (PLD) which utilizes The Atmel proven electrically erasable Flash memory technology.

Speeds down to 12ns with zero standby power dissipation are offered.

Features

  • Industry-standard Architecture.
  • 12ns Maximum Pin-to-pin Delay.
  • Zero Power.
  • 100µA Maximum Standby Power (Input Transition Detection).
  • CMOS and TTL Compatible Inputs and Outputs.
  • Advanced Electrically ErasableTechnology.
  • Reprogrammable.
  • 100% Tested.
  • Latch Feature Holds Inputs to Previous Logic State.
  • High-reliability CMOS Process.
  • 20 Year Data Retention.
  • 100 Erase/Write Cycles.
  • 2,0.

📥 Download Datasheet

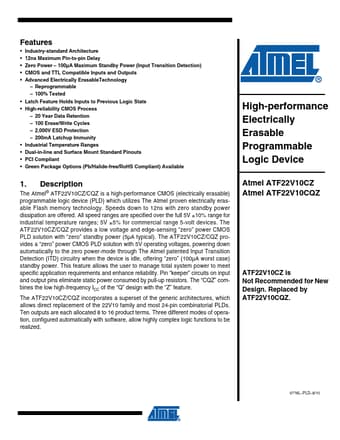

Datasheet preview – ATF22V10CZ

Datasheet Details

Part number ATF22V10CZ
Manufacturer ATMEL Corporation
File Size 514.28 KB
Description High-performance Electrically Erasable Programmable Logic Device
Datasheet download datasheet ATF22V10CZ Datasheet
