ATF20V8CQ, ATF20V8C Datasheet - ATMEL Corporation

ATF20V8CQ High- Performance EE PLD

The ATF20V8C is a high-performance CMOS (electricallyerasable) programmable logic device (PLD) that utilize Atmel's proven electrically-erasable Flash memory technology. Speeds down to 5 ns and power dissipation as low as 10 µA are offered. All speed ranges are specified over the full 5V ± 10% range.

ATF20V8CQ Features

* User-controlled Power-down Pin High-speed Equivalent of ATF20V8B Pin-controlled Zero Standby Power (10 µA Typical) Option Industry-standard Architecture

* Emulates Many 24-pin PALs®

* Low-cost Easy-to-use

ATF20V8C_ATMELCorporation.pdf

This datasheet PDF includes multiple part numbers: ATF20V8CQ, ATF20V8C. Please refer to the document for exact specifications by model.

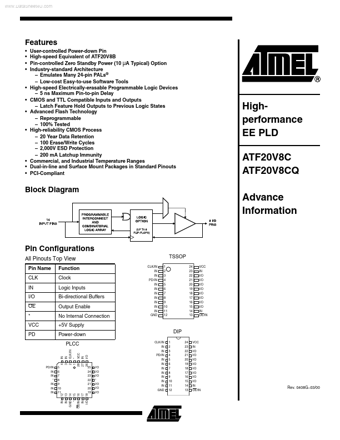

ATF20V8CQ Datasheet Preview Page 2 ATF20V8CQ Datasheet Preview Page 3

Datasheet Details

Part number:

ATF20V8CQ, ATF20V8C

Manufacturer:

ATMEL Corporation

File Size:

92.81 KB

Description:

High- performance ee pld.

Note:

This datasheet PDF includes multiple part numbers: ATF20V8CQ, ATF20V8C.
Please refer to the document for exact specifications by model.
