Features
• 3.0V to 5.5V Operating Range • Lowest Power in Its Class • Advanced Low-voltage, Zero-power, Electrically Erasable Programmable Logic Device • “Zero” Standby Power (25µA Maximum) (Input Transition Detection) • Low-voltage Equivalent of Atmel ATF22V10CZ • Ideal for Battery Powered Systems • CMOS- and TTL-compatible Inputs and Outputs • Inputs are 5V Tolerant • Latch Feature Hold Inputs to Previous Logic States • EE Technology
– Reprogrammable – 100% Tested • High-reliability CMOS Process – 20-year Data Retention – 10,000 Erase/Write Cycles – 2,000V ESD Protection – 200mA Latch-up Immunity • Commercial and Industrial Temperature Ranges • Dual Inline and Surface Mount Standard Pinouts • Green Package Options (Pb/Halide-free/RoHS Compliant) Available
1.

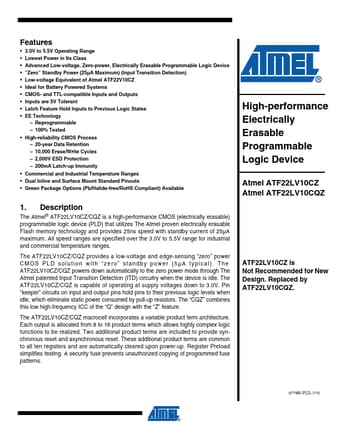

ATF22LV10CQZ Datasheet
