ATF20V8BQ - High-performance EE PLD

This page provides the datasheet information for the ATF20V8BQ, a member of the ATF20V8B High-performance EE PLD family.

Datasheet Summary

Features

Industry-standard Architecture.
Emulates Many 24-pin PALs®.
Low-cost Easy-to-use Software Tools.
High-speed Electrically-erasable Programmable Logic Devices.
7.5 ns Maximum Pin-to-pin Delay.
Several Power Saving Options Device ATF20V8B ICC, Standby 50 mA ICC, Active 55 mA ATF20V8BQ 35 mA 40 mA ATF20V8BQL 5 mA 20 mA.
CMOS and TTL Compatible Inputs and Outputs.
Input and I/O Pull-up Resistors.
Advanced Flas.

Datasheet Details

Part number	ATF20V8BQ
Manufacturer	ATMEL
File Size	554.35 KB
Description	High-performance EE PLD
Datasheet	ATF20V8BQ Datasheet

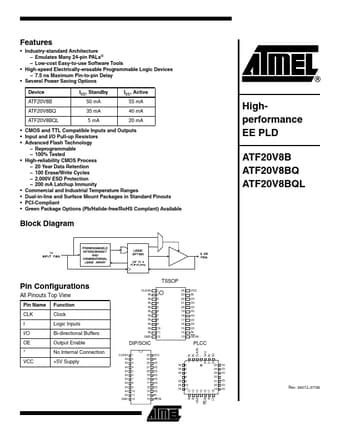

Additional preview pages of the ATF20V8BQ datasheet.
