AT49LV8011, AT49BV8011 Datasheet - ATMEL

AT49LV8011 8-megabit (512K x 16/1M x 8) 3-volt Only Flash Memory

The AT49BV/LV8011(T) is a 2.7- to 3.3-volt 8-megabit Flash memory organized as 524,288 words of 16 bits each or 1,048,576 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory is divided into 22 sectors for erase operations. The device is offered .

AT49LV8011 Features

* Single Supply for Read and Write: 2.7V to 3.3V (BV), 3.0V to 3.3V (LV)

* Access Time

* 90 ns

* Sector Erase Architecture Fourteen 32K Word (64K Byte) Sectors with Individual Write Lockout Two 16K Word (32K Byte) Sectors with Individual Write Lockout Two 8K Word (16K

AT49BV8011_ATMEL.pdf

This datasheet PDF includes multiple part numbers: AT49LV8011, AT49BV8011. Please refer to the document for exact specifications by model.

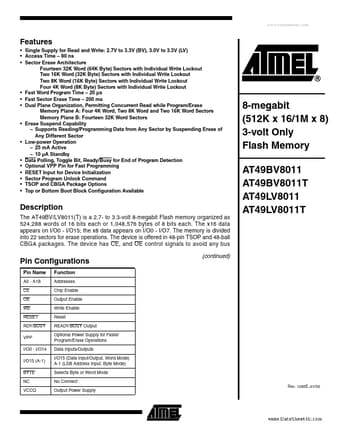

AT49LV8011 Datasheet Preview Page 2 AT49LV8011 Datasheet Preview Page 3

Datasheet Details

Part number:

AT49LV8011, AT49BV8011

Manufacturer:

ATMEL

File Size:

344.42 KB

Description:

8-megabit (512k x 16/1m x 8) 3-volt only flash memory.

Note:

This datasheet PDF includes multiple part numbers: AT49LV8011, AT49BV8011.
Please refer to the document for exact specifications by model.
