AT49LV8192

8-Megabit (512K x 16) CMOS Flash Memory

AT49LV8192 Features

* Low Voltage Operation

* 2.7V Read

* 5V Program/Erase

* Fast Read Access Time - 120 ns

* Internal Erase/Program Control

* Sector Architecture

* One 8K Words (16K bytes) Boot Block with Programming Lockout

* Two 8K Words (16K bytes) Par

AT49LV8192 General Description

The AT49BV8192 and AT49LV8192 are 3-volt, 8-megabit Flash Memories organized as 512K words of 16 bits each. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the devices offer access times to 120 ns with power dissipation of just 67 mW at 2.7V read. When deselected, the CMOS standby cu.

AT49LV8192 Datasheet (148.03 KB)

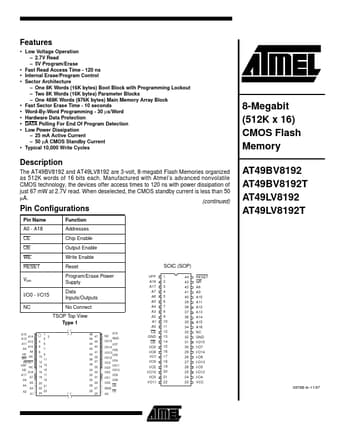

Preview of AT49LV8192 PDF

Datasheet Details

Part number:

AT49LV8192

Manufacturer:

ATMEL

File Size:

148.03 KB

Description:

8-megabit (512k x 16) cmos flash memory.
