AT49LV8192AT

8-megabit (1M x 8/512K x 16) Flash Memory

AT49LV8192AT Features

* Single-voltage Read/Write Operation: 2.7V to 3.6V (BV), 3.0V to 3.6V (LV)

* Fast Read Access Time

* 70 ns

* Internal Erase/Program Control

* Sector Architecture

* One 8K Word (16K Bytes) Boot Block with Programming Lockout

* Two 4K Word (8K B

AT49LV8192AT General Description

The AT49BV008A(T) and AT49BV/LV8192A(T) are 3-volt, 8-megabit Flash memories organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the devices offer access times to 70 ns with power dissipation of just 67 mW at 2.7.

AT49LV8192AT Datasheet (201.06 KB)

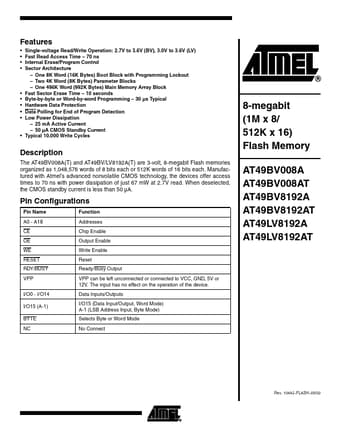

Preview of AT49LV8192AT PDF

Datasheet Details

Part number:

AT49LV8192AT

Manufacturer:

ATMEL

File Size:

201.06 KB

Description:

8-megabit (1m x 8/512k x 16) flash memory.
