S7805D - Fixed Voltage Regulator

AUK corp

📥 Download Datasheet

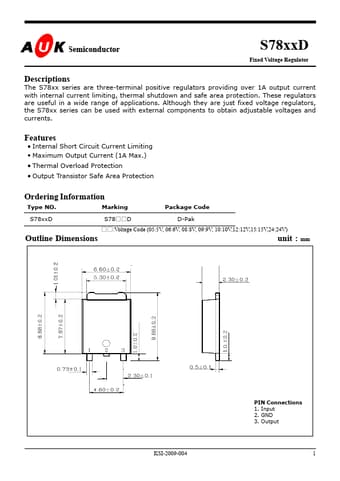

S7805D Datasheet Preview — Preview of S7805D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S7805D
Manufacturer: AUK corp
File Size: 274.27 KB
Datasheet: S7805D_AUKcorp.pdf
Description: Fixed Voltage Regulator

S7805D Product details

Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection.

Features

Internal Short Circuit Current Limiting.
Maximum Output Current (1A Max. ).
Thermal Overload Protection.
Output Transistor Safe Area Protection Ordering Information Type NO. S78xxD Marking S78.
D Package Code D-Pak.
:Voltage Code (05:5V, 06:6V, 08:8V, 09:9V, 10:10V,12:12V,15:15V,24:24V) Outline Dimensions unit : mm PIN Connections 1. Input 2. GND 3. Output KSI-2009-004 1 S78xxD Absolute Maximum Ratings Characteristic O.
