S7806P, S7805P Datasheet - AUK

S7806P Fixed Voltage Regulator

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection. These regulators are useful in a wide range of applications. Although they are just fixed voltage regulators, the S78xx series can be u.

S7806P Features

* Internal Short Circuit Current Limiting

* Maximum Output Current (1A Max.)

* Thermal Overload Protection

* Output Transistor Safe Area Protection Ordering Information Type NO. Marking Package Code S78xxP S78

* P TO-220AB

* :Vol

S7805P-AUK.pdf

This datasheet PDF includes multiple part numbers: S7806P, S7805P. Please refer to the document for exact specifications by model.

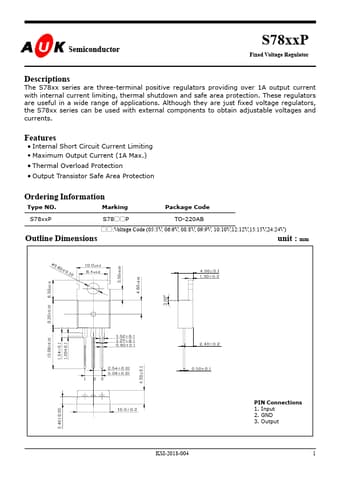

S7806P Datasheet Preview Page 2 S7806P Datasheet Preview Page 3

Datasheet Details

Part number:

S7806P, S7805P

Manufacturer:

AUK

File Size:

299.18 KB

Description:

Fixed voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: S7806P, S7805P.
Please refer to the document for exact specifications by model.
