S7806D

Fixed Voltage Regulator

S7806D Features

* Internal Short Circuit Current Limiting

* Maximum Output Current (1A Max.)

* Thermal Overload Protection

* Output Transistor Safe Area Protection Ordering Information Type NO. S78xxD Marking S78

* D Package Code D-Pak

* :Voltage Code

S7806D General Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection. These regulators are useful in a wide range of applications. Although they are just fixed voltage regulators, the S78xx series can be u.

S7806D Datasheet (274.27 KB)

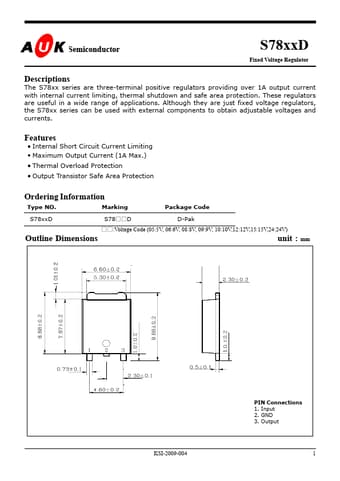

Preview of S7806D PDF

Datasheet Details

Part number:

S7806D

Manufacturer:

AUK corp

File Size:

274.27 KB

Description:

Fixed voltage regulator.
