S7806PIC - Fixed Voltage Regulator

AUK corp

📥 Download Datasheet

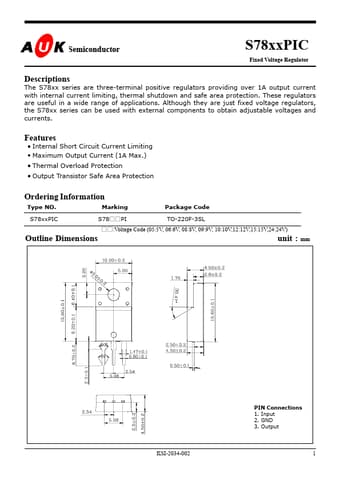

S7806PIC Datasheet Preview — Preview of S7806PIC PDF

Datasheet Details

Part number: S7806PIC
Manufacturer: AUK corp
File Size: 282.49 KB
Datasheet: S7806PIC_AUKcorp.pdf
Description: Fixed Voltage Regulator

S7806PIC Product details

Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection.

Features

Internal Short Circuit Current Limiting.
Maximum Output Current (1A Max. ).
Thermal Overload Protection.
Output Transistor Safe Area Protection Ordering Information Type NO. S78xxPIC Marking S78.
PI Package Code TO-220F-3SL.
:Voltage Code (05:5V, 06:6V, 08:8V, 09:9V, 10:10V,12:12V,15:15V,24:24V) Outline Dimensions unit : mm PIN Connections 1. Input 2. GND 3. Output KSI-2034-002 1 S78xxPIC Absolute Maximum Ratings Chara.
