S7805P - Fixed Voltage Regulator

AUK

📥 Download Datasheet

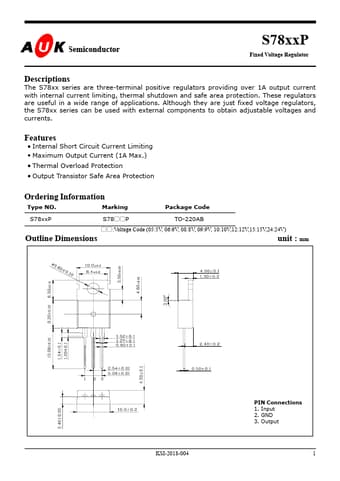

S7805P Datasheet Preview — Preview of S7805P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S7805P
Manufacturer: AUK
File Size: 299.18 KB
Datasheet: S7805P-AUK.pdf
Description: Fixed Voltage Regulator

S7805P Product details

Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection.

Features

Internal Short Circuit Current Limiting.
Maximum Output Current (1A Max. ).
Thermal Overload Protection.
Output Transistor Safe Area Protection Ordering Information Type NO. Marking Package Code S78xxP S78.
P TO-220AB.
:Voltage Code (05:5V, 06:6V, 08:8V, 09:9V, 10:10V,12:12V,15:15V,24:24V) Outline Dimensions unit : mm KSI-2018-004 PIN Connections 1. Input 2. GND 3. Output 1 S78xxP Absolute Maximum Ratings Characte.
