S7805PIC

Fixed Voltage Regulator

S7805PIC Features

* Internal Short Circuit Current Limiting

* Maximum Output Current (1A Max.)

* Thermal Overload Protection

* Output Transistor Safe Area Protection Ordering Information Type NO. S78xxPIC Marking S78

* PI Package Code TO-220F-3SL

* :Vol

S7805PIC General Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection. These regulators are useful in a wide range of applications. Although they are just fixed voltage regulators, the S78xx series can be u.

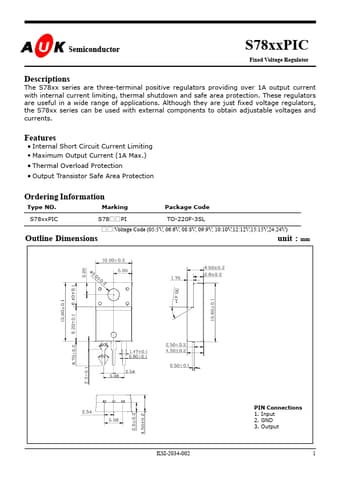

S7805PIC Datasheet (282.49 KB)

Preview of S7805PIC PDF

Datasheet Details

Part number:

S7805PIC

Manufacturer:

AUK corp

File Size:

282.49 KB

Description:

Fixed voltage regulator.
