S7805PI

Fixed Voltage Regulator

S7805PI Features

* Internal Short Circuit Current Limiting

* Maximum Output Current (1A Max.)

* Thermal Overload Protection

* Output Transistor Safe Area Protection Ordering Information Type NO. S78xxPI Marking S78

* PI Package Code TO-220F

* :Voltage

S7805PI General Description

The S78xx series are three-terminal positive regulators providing over 1A output current with internal current limiting, thermal shutdown and safe area protection. These regulators are useful in a wide range of applications. Although they are just fixed voltage regulators, the S78xx series can be u.

S7805PI Datasheet (285.69 KB)

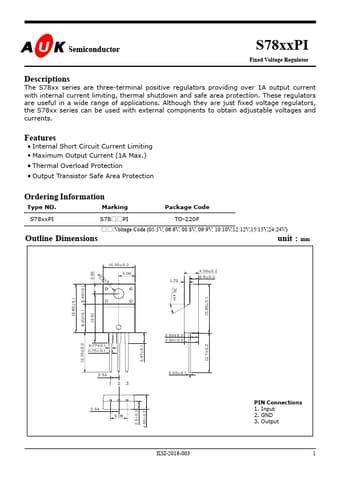

Preview of S7805PI PDF

Datasheet Details

Part number:

S7805PI

Manufacturer:

AUK corp

File Size:

285.69 KB

Description:

Fixed voltage regulator.
