ACMD-7403

Miniature UMTS Band II / PCS Duplexer

ACMD-7403 Features

* Miniature Size

* 3.0 x 3.0 mm Max footprint

* 1.2 mm Max height

* High Power Rating

* 33 dBm Abs Max Tx Power

* Lead-Free Construction Specifications

* Rx Band Performance, 1930.5-1989.5 MHz,

* 30 to +85°C

* Rx Noise

ACMD-7403 General Description

The Avago Technologies’ ACMD-7403 is a miniature duplexer designed for use in UMTS Band II and PCS (Blocks A

*F) handsets. The ACMD-7403 enhances the sensitivity and dynamic range of handset receivers by providing more than 54 dB attenuation of the transmitted signal at the receiver input and.

ACMD-7403 Datasheet (1.15 MB)

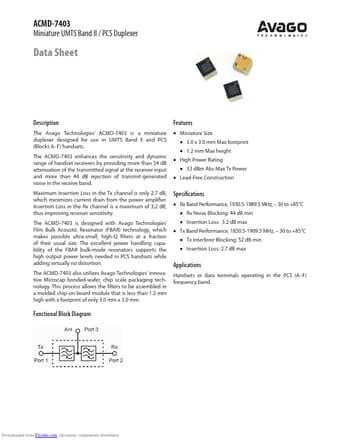

Preview of ACMD-7403 PDF

Datasheet Details

Part number:

ACMD-7403

Manufacturer:

AVAGO

File Size:

1.15 MB

Description:

Miniature umts band ii / pcs duplexer.
