ACMD-7407

UMTS Band 2 Duplexer

ACMD-7407 Features

* x High Isolation x Miniature Size

* 2.0 x 2.5 mm size

* 0.90 mm Max Height

* Standard 2 x 2.5 mm PCB footprint x High Power Rating

* 33 dBm Abs Max Tx Power x Environmental

* RoHS Compliant

* Halogen free

* TBBPA Free Specifications x Rx Band Pe

ACMD-7407 General Description

The Avago ACMD-7407 is a highly miniaturized duplexer designed for use in UMTS Band 2 (1850.48

* 1909.52 MHz UL, 1930.48

* 1989.52 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel In.

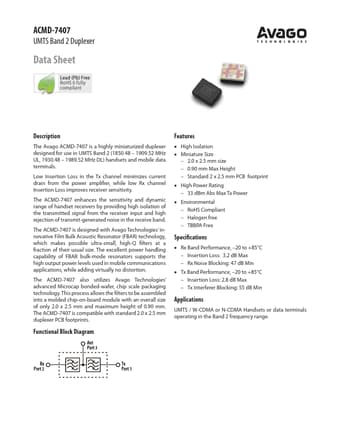

ACMD-7407 Datasheet (396.50 KB)

Preview of ACMD-7407 PDF

Datasheet Details

Part number:

ACMD-7407

Manufacturer:

AVAGO

File Size:

396.50 KB

Description:

Umts band 2 duplexer.
