ACMD-7602 Datasheet, Duplexer, AVAGO

ACMD-7602 Features

  • Duplexer
  • Miniature size - 2.5 x 3.0 mm max footprint - 1.2 mm max height
  • High power rating - +33 dBm Abs Max Tx Power
  • Lead-free construction Specifications

PDF File Details

Part number:

ACMD-7602

Manufacturer:

AVAGO

File Size:

821.25kb

Download:

📄 Datasheet

Description:

Miniature umts band i duplexer. The Avago ACMD-7602 is a miniature duplexer designed for use in UMTS Band I handsets. Maximum Insertion Loss in the Tx channel is onl

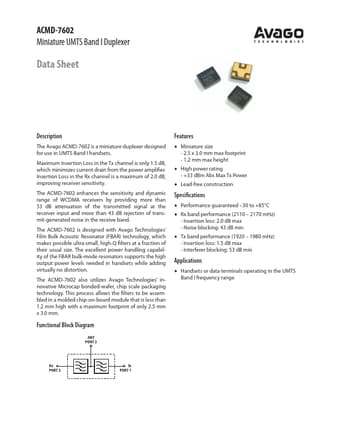

Datasheet Preview: ACMD-7602 📥 Download PDF (821.25kb)
Page 2 of ACMD-7602 Page 3 of ACMD-7602

ACMD-7602 Application

  • Applications
  • Handsets or data terminals operating in the UMTS Band I frequency range ANT PORT 3 Rx PORT 2 Tx PORT 1 ACMD-7602 Specifi
