ACMD-7601, Miniature UMTS Band I Duplexer

ACMD-7601 Miniature UMTS Band I Duplexer Data Sheet .
Features The Avago Technologies ACMD-7601 is a miniature duplexer designed for UMTS Band I handsets.

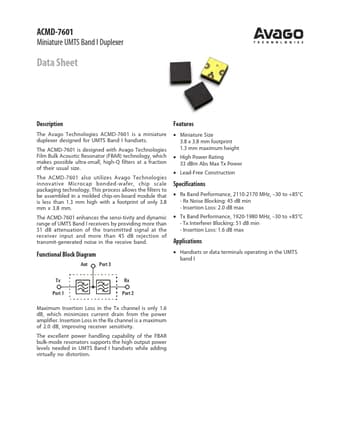

datasheet Preview Page 1 from Datasheet4u.com

ACMD-7601-AVAGO.pdf

ACMD-7601 Datasheet Preview — Preview of ACMD-7601 PDF

Datasheet Details

Part number:

ACMD-7601

Manufacturer:

AVAGO

File Size:

526.33 KB

Description:

Miniature UMTS Band I Duplexer

Features

* The Avago Technologies ACMD-7601 is a miniature duplexer designed for UMTS Band I handsets. The ACMD-7601 is designed with Avago Technologies Film Bulk Acoustic Resonator (FBAR) technology, which makes possible ultra-small, high-Q filters at a fraction of their usual size. The ACMD-7601 also utiliz

Applications

* Functional Block Diagram Ant Port 3
* Handsets or data terminals operating in the UMTS band I Tx Port 1 Rx Port 2 Maximum Insertion Loss in the Tx channel is only 1.6 dB, which minimizes current drain from the power amplifier. Insertion Loss in the Rx channel is a maximum of 2.0 dB, imp
